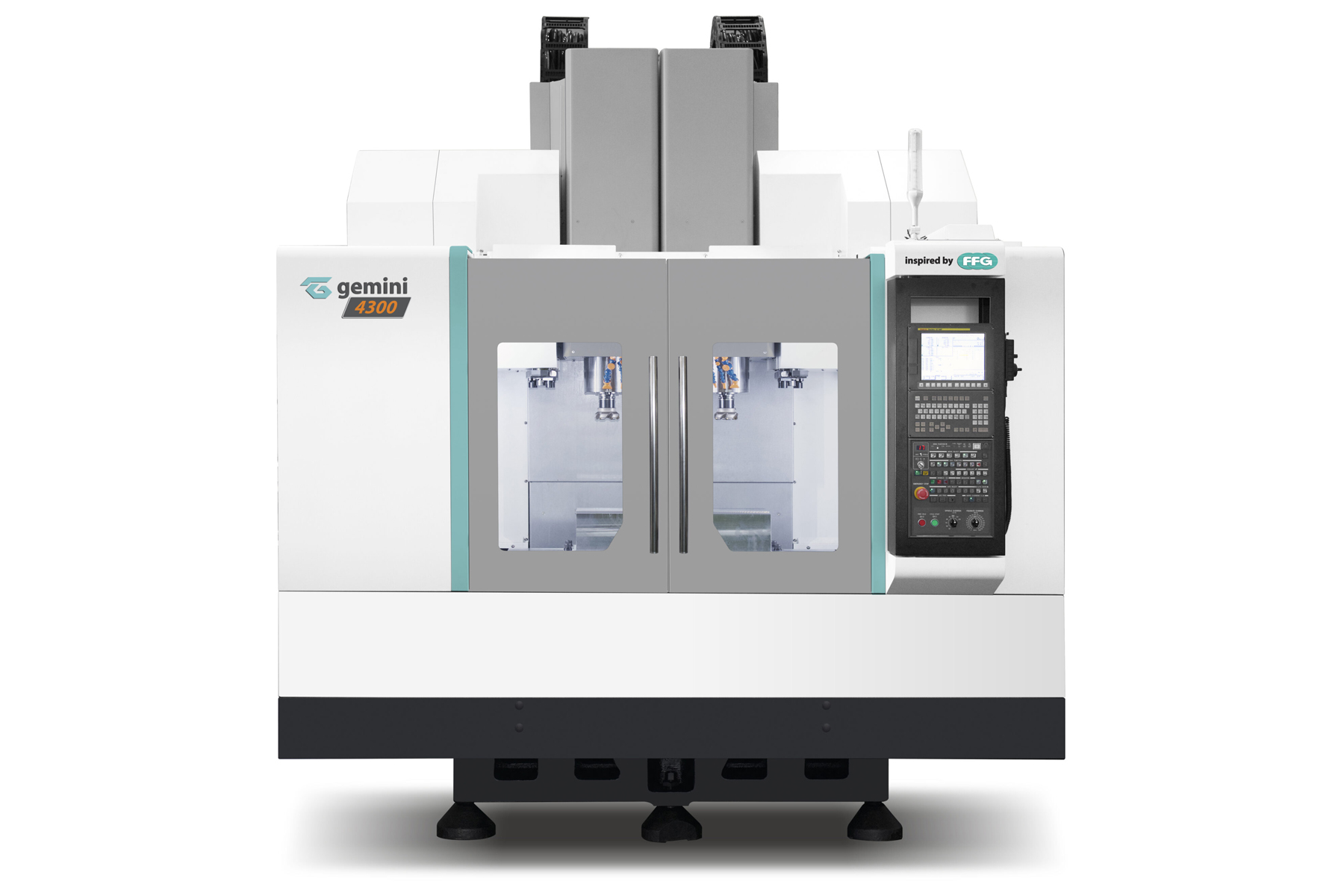

DMC DVD-4300
Fanuc 0i-MF Plus Controller 10.4″ LCD Monitor Twin Spindle BBT #30 Dual Contact Spindle w/ Oil Cooling Unit 2 x 12,000 rpm DDS / [24,000 rpm Opt] Powerful 18 hp (13 kW) Spindle Motor – S3-15% / 82.8 Nm (61 lbs.-ft) Independent Z1 and Z2 Axis X / Y / Z and U Axis Roller Guideways U Axis for X Axis Compensation V Axis for Y Axis Compensation 400 mm Distance Between Spindle Center to Center 2,362 IPM (60m/min) X, Y, and Z Rapid Traverse Table 41” (1,040mm) x 16.9” (430mm) 880lbs.(400kg) Load Capacity Tool Magazine 2 x 24ea. Tool Storage Ø2.56” (Ø 65mm) Maximum Tool Diameter Fully Enclosed Splash Guard Gun Coolant / Bed Flushing Coolant / Shower Coolant 70 Bar CTS Preparation Air Gun Auto Door (4) Pairs of M-Codes Oil Skimmer (2) Internal Augers 3-Color Signal Light
| Machine Type: | Machining Center |
|---|---|
| Num. of Axes: | 4 |
| Operation Type: | CNC |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 40.940(L) x 16.930(W) |
|---|---|
| Max Workpiece Weight (lbs): | 880 |
| Num. Main Spindles: | 2 |
|---|---|
| Direction: | Vertical |
| Taper: | #30 |
| Top RPM: | 12,000 |
| Top RPM Opt: | 24,000 |
| HP (30 min rating): | 7.40 |
| HP Opt: | 10.00 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 24 |
| Num. Axes: | 4 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
