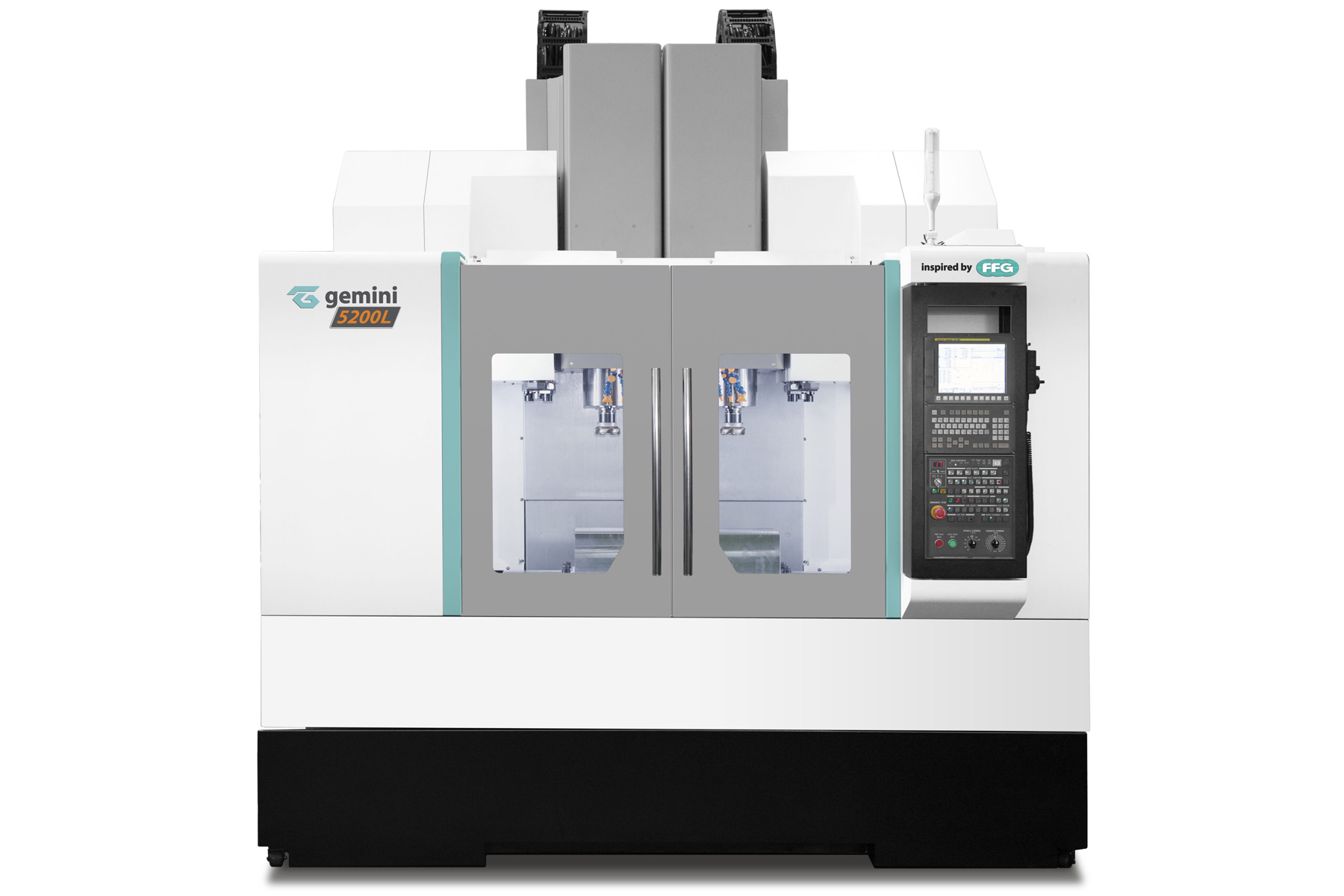

DMC DVD-5200L
Fanuc 0i-MF Plus Controller 10.4″ LCD Monitor Twin Spindle CAT #40 Dual Contact Spindle 2 x 12,000 rpm DDS w/ Oil Cooling System Powerful 25 hp (18.5 kW) Spindle Motor Torque 87 lbf-ft (118 N.m) 8.9 kgf.m) S3-25% Independent Z1 and Z2 Axis 440 mm (17.3″) Distance Between Spindle Center to Center X / Y / Z and U Axis Roller Guideways U Axis for X Axis Compensation V Axis for Y Axis Compensation 1,575 IPM (40m/min) X, Y, and Z Rapid Traverse Table 47.2” (1,200mm) x 20.5” (520mm) 1,760 lbs.(800kg) Load Capacity Tool Magazine 2 x 30ea. Tool Storage Ø3.15” (Ø 80mm) Maximum Tool Diameter Gun Coolant / Bed Flushing Coolant / Shower Coolant 70 Bar CTS Preparation Air Gun Auto Door (4) Pairs of M-Codes Oil Skimmer (2) Internal Augers (X-Axis Direction) 3-Color Signal Light
| Machine Type: | Machining Center |
|---|---|
| Num. of Axes: | 4 |
| Operation Type: | CNC |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 47.240(L) x 20.470(W) |
|---|---|
| Max Workpiece Weight (lbs): | 1,760 |
| Num. Main Spindles: | 2 |
|---|---|
| Direction: | Vertical |
| Taper: | #40 |
| Top RPM: | 12,000 |
| HP (30 min rating): | 20.00 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 30 |
| Num. Axes: | 4 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
