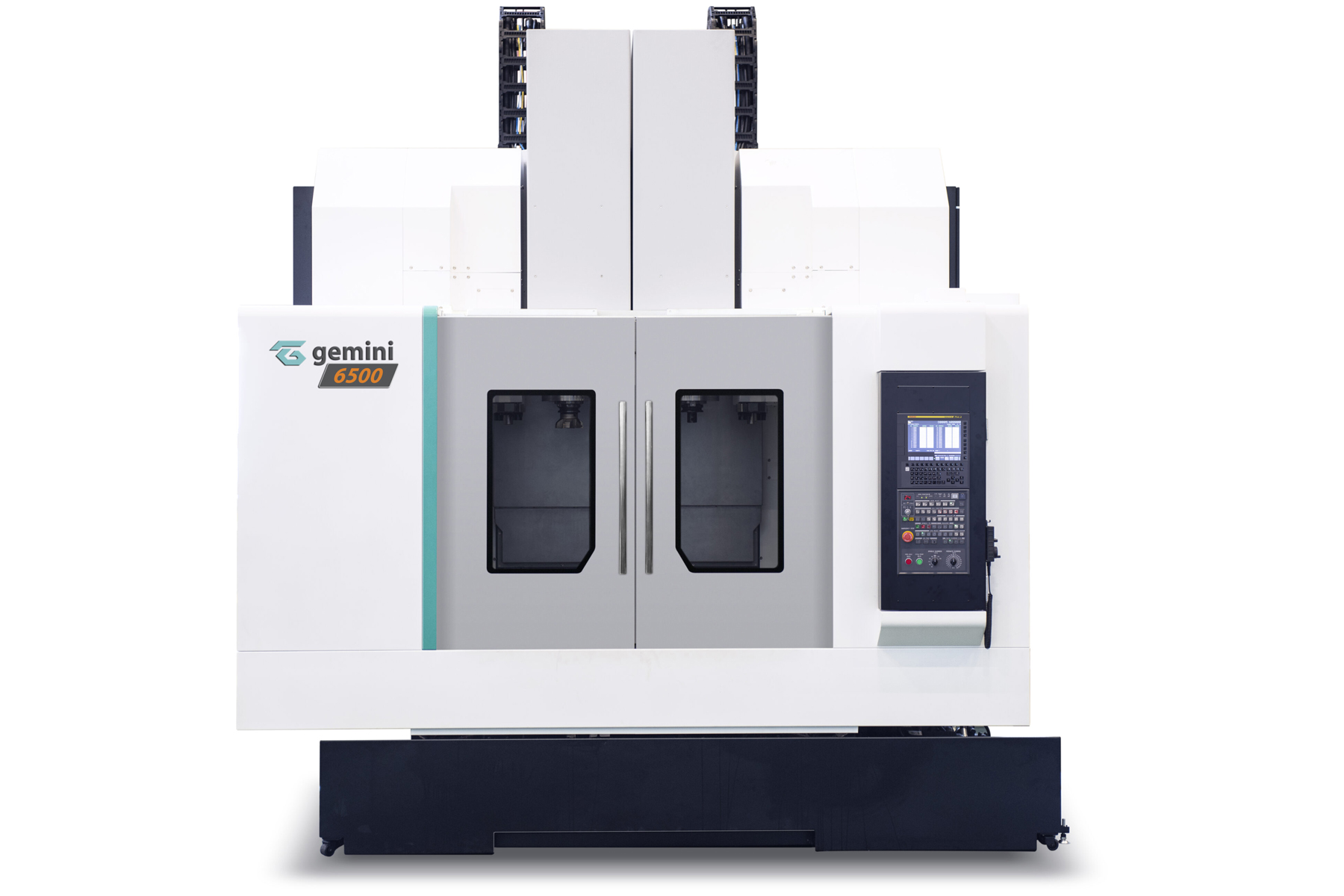

DMC DVD-6500
Fanuc i-Series Controller 10.4″ LCD Monitor Twin Spindle CAT #50 Dual Contact Spindle 2 x 8,000 rpm DDS Powerful 30 hp (22 kW) Spindle Motor w/ Cooling System Torque 260.5 lbf-ft (353.2 N.m) – S3-25% Cooling System Independent Z1 and Z2 Axis 650 mm (25.6″) / [550 mm (21.6″)] Distance Between Z1 and Z2 X / Y / Z and U Axis Roller Guideways U Axis for X Axis Compensation V Axis for Y Axis Compensation 1,417 IPM (36m/min) X, Y, and 1,181 IPM (30m/min) Z Rapid Traverse Table 59” (1,500mm) x 26.3” (670mm) 2,860 lbs. (1300kg) Load Capacity Tool Magazine 2 x 24ea. Tool Storage Ø4.33” (Ø 110mm) Maximum Tool Diameter Gun Coolant / Bed Flushing Coolant / Shower Coolant 70 Bar CTS Preparation Air Gun Auto Door Oil Skimmer (2) Internal Augers (X-Axis Direction) 3-Color Signal Light
| Machine Type: | Machining Center |
|---|---|
| Num. of Axes: | 4 |
| Operation Type: | CNC |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 59.060(L) x 26.380(W) |
|---|---|
| Max Workpiece Weight (lbs): | 2,860 |
| Num. Main Spindles: | 2 |
|---|---|
| Direction: | Vertical |
| Taper: | #40 |
| Taper Opt: | #50 |
| Top RPM: | 12,000 |
| Top RPM Opt: | 8,000 |
| HP (30 min rating): | 20.00 |
| HP Opt: | 25.00 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 30 |
| Num. Tools Opt: | 24 |
| Num. Axes: | 4 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
