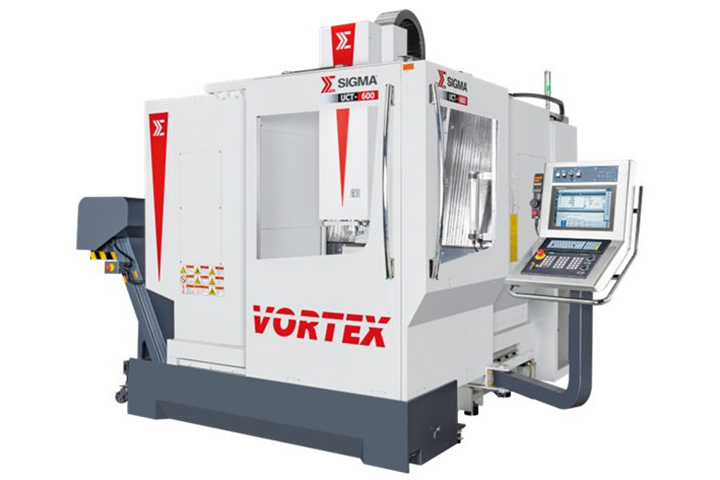

Feeler UCT-600 (4+1)
Fanuc 0i-MF Plus Controller 10.4” LCD Monitor Manual Guide i Spindle Big Plus CAT #40 (Dual Contact) 12,000 rpm DDS w/ Oil Cooler Powerful 14.8 HP (11 kW) S3-60% Torque 51.6 lbf-ft (70 N.m) Oil Chiller Table 23.6” (600mm) Diameter 770 lbs. (350kg) Load Capacity ATC 30 Tools X / Y / Z Roller Guide Ways 1,000 PSI Coolant Through Spindle Preparation w/ Rotary Unit. Oil Skimmer Coolant Gun (8) Extra M-Code Hydraulic Interface (2 Inlets & 2 Outlets on the Table) Auto Power Off Chip Conveyor 3-Color Tower Signal Light AICC II & G 68.2 Fast 30m/min (1,181 IPM) X, Y and Z Rapid Traverse
| Machine Type: | Machining Center |
|---|---|
| Num. of Axes: | 4 |
| Operation Type: | CNC |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 23.600(L) x 23.600(W) |
|---|---|
| Max Workpiece Weight (lbs): | 770 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Vertical |
| Taper: | #40 |
| Top RPM: | 15,000 |
| HP (30 min rating): | 13.40 |
| HP Opt: | 22.80 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 24 |
| Num. Tools Opt: | 60 |
| Num. Axes: | 4 | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Num. Axes Opt: | 5 | ||||||||||||||||||||||
| U Axis: | None | ||||||||||||||||||||||
|
|||||||||||||||||||||||
