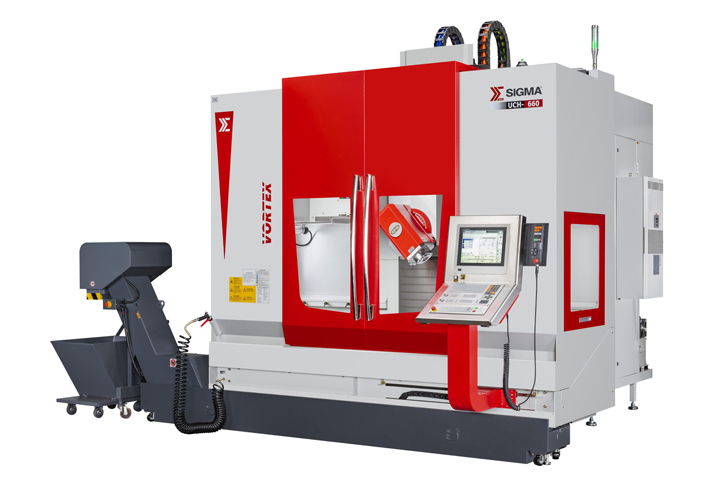

Feeler UCH-660
SINUMERIK ONE NCU 1750 Controller 15” TFT Monitor Spindle HSK-A63 18,000 rpm Motorized Spindle Powerful 50 HP (37 kW) S6-40% Spindle Water Cooler Table Ø 26” (660mm) rotary on the 1,450mm x 700mm (57” x 27.6”) table 2,200 lbs. (1,000 kg) load capacity on the C axis 3,300 lbs. (1,500 kg) load capacity on the square table. B axis (+110° ~ -110°) ATC 40 Tools X / Y / Z Roller Guide Ways Fast 50 m/min (1,969 IPM) X, Y and Z Rapid Traverse Air Conditioner Fargo Linear Scales (X/ Y/ Z/ B/ C) CTS 435 PSI (30 bar) with Filter System (Capacity: 25um / 8% Oil) Oil Skimmer (Disc Type) Chip Flushing & Coolant Gun Auto Power Off Scraper and Drum Type Chip Conveyor with Bucket CE Modification Renishaw RMP 60 Calibration Ball 3-Color Tower Signal Light Spindle Coolant Nozzle & Ring
| Machine Type: | Machining Center |
|---|---|
| Num. of Axes: | 5 |
| Operation Type: | CNC |
| CNC Brand: | Siemens |
| Table Size L x W (in.): | 26.000(L) x 26.000(W) |
|---|---|
| Max Workpiece Weight (lbs): | 3,300 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Vertical |
| Taper: | #40 |
| Top RPM: | 12,000 |
| HP (30 min rating): | 40.00 |
| HP Opt: | 50.00 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 40 |
| Num. Tools Opt: | 50 |
| Num. Axes: | 5 | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| U Axis: | None | ||||||||||||||||||||||
|
|||||||||||||||||||||||
