Feeler SMH-800

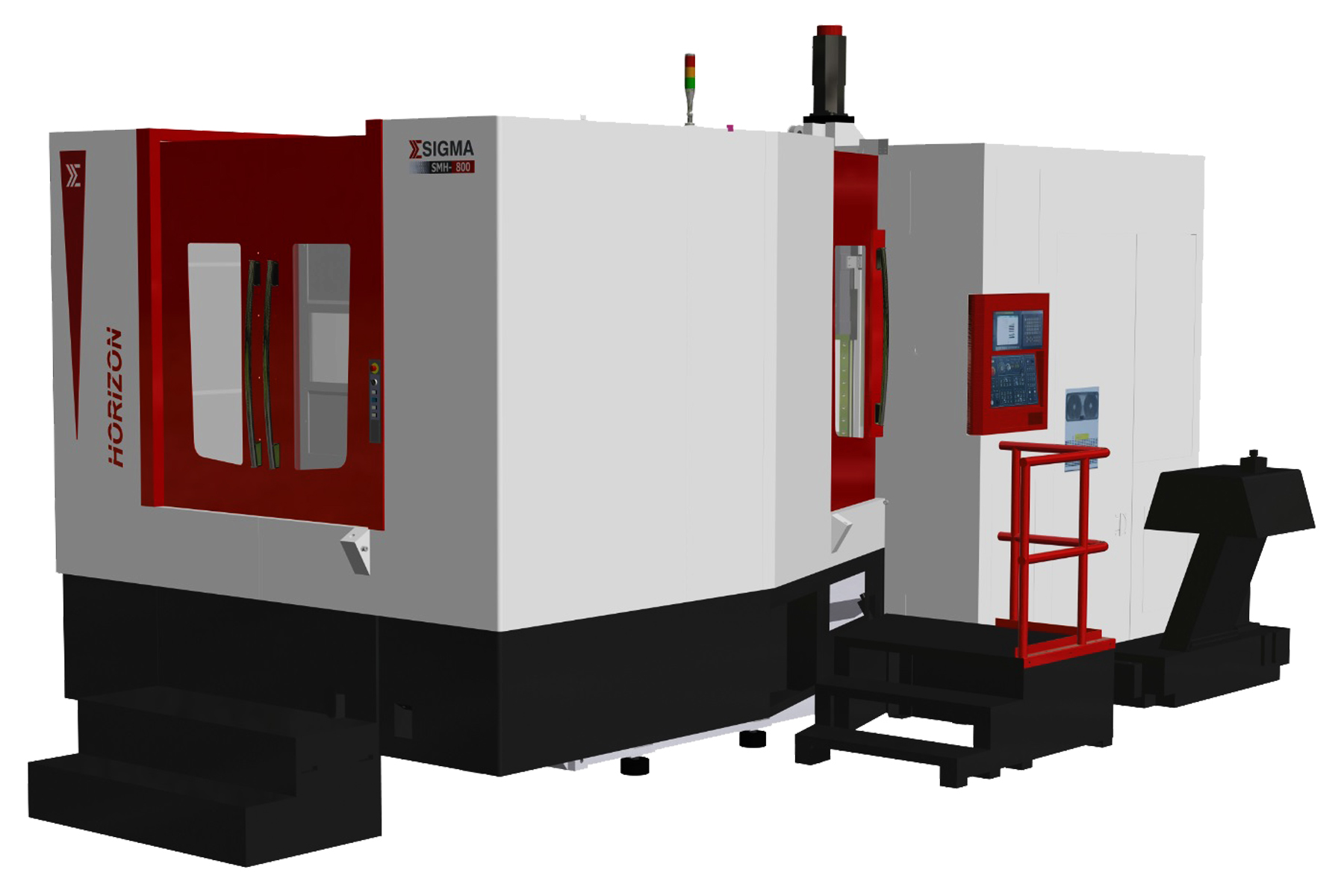

The HORIZON SMH-800 Horizontal Machining Center is built for large, heavy workpieces and demanding heavy-duty machining applications, combining exceptional rigidity, high torque, and production-oriented performance. Its robust T-shaped base incorporates a high/low rail design and heavy-duty roller guideways to enhance structural stability and load capacity, while the geared spindle delivers the high torque required for aggressive cutting at lower speeds. With generous 1,300 × 1,020 × 1,100 mm X/Y/Z travels, an 800 × 800 mm pallet, and up to 2,000 kg pallet capacity, the SMH-800 provides the size and strength required for machining substantial components. A 60-tool automatic tool changer, available servo-driven automatic pallet changer, and efficient twin-screw chip evacuation system help reduce non-cutting time and support continuous production. Designed to deliver rigidity, accuracy, heavy-cutting performance, and dependable productivity, the SMH-800 is an excellent platform for man ufacturers producing large, complex components for automotive, aerospace, energy, and other demanding industrial applications. [SIGMA HORI...-E(202206) | PDF]
