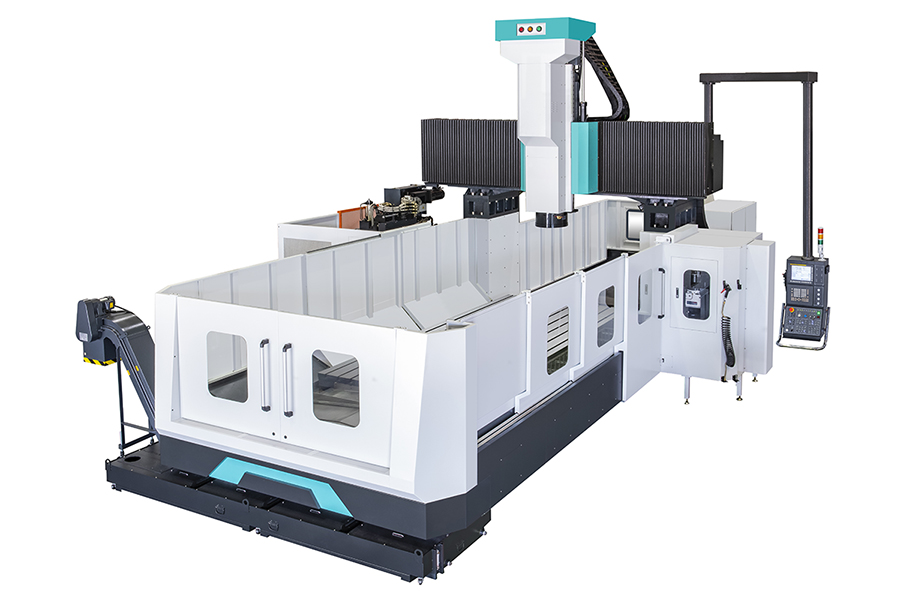

Feeler SVW-4113
The FEELER SVW-4113 heavy-duty double-column machining center delivers the rigidity, capacity, and versatility required for large-component machining. Its extended X-axis machining envelope, fully supported traveling table, and geared spindle provide excellent stability and high-torque cutting capability for demanding applications. Optional milling head configurations further expand the machine’s versatility for multi-face machining, helping reduce setups and improve productivity when machining large, long, and complex workpieces.
| Machine Type: | Machining Center |
|---|---|
| Num. of Axes: | 3 |
| Operation Type: | CNC |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 157.500(L) x 43.300(W) |
|---|---|
| Max Workpiece Weight (lbs): | 17,637 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Vertical |
| Taper: | #50 |
| Taper Opt: | #40 |
| Top RPM: | 6,000 |
| Top RPM Opt: | 8,000 |
| HP (30 min rating): | 25.00 |
| HP Opt: | 35.00 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 24 |
| Num. Tools Opt: | 40 |
| Num. Axes: | 3 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
