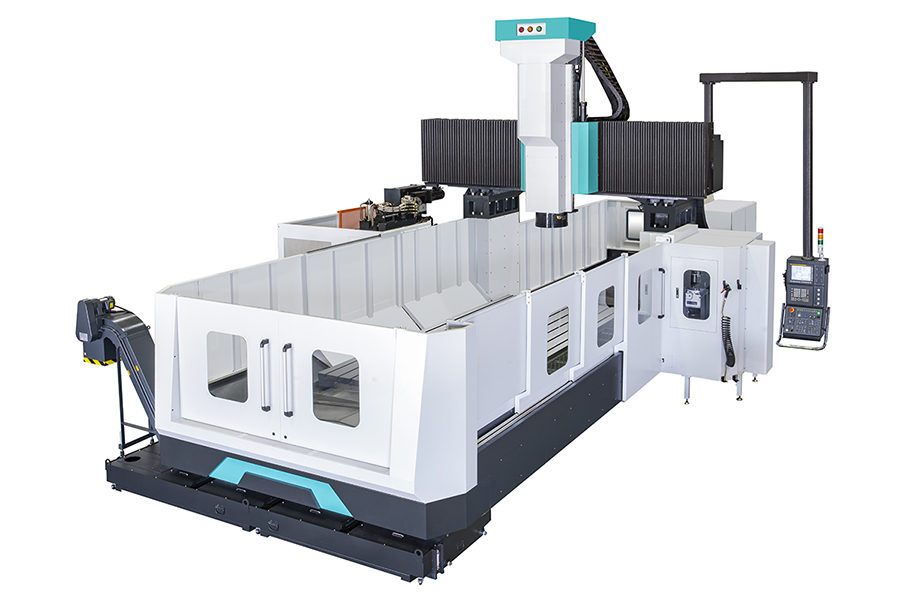

Feeler SVW-2817
The FEELER SVW-2817 is a heavy-duty double-column machining center engineered for demanding applications requiring exceptional rigidity, accuracy, and machining versatility. Its robust double-column construction provides a stable foundation for heavy cutting and precision machining of large components, while its extended machining capacity accommodates longer workpieces and complex production requirements. Available milling head configurations further expand machining flexibility, allowing manufacturers to consolidate operations, reduce setups, and improve productivity when producing large, high-value components.
| Machine Type: | Machining Center |
|---|---|
| Num. of Axes: | 3 |
| Operation Type: | CNC |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 102.400(L) x 55.100(W) |
|---|---|
| Max Workpiece Weight (lbs): | 19,841 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Vertical |
| Taper: | #50 |
| Taper Opt: | #40 |
| Top RPM: | 6,000 |
| Top RPM Opt: | 8,000 |
| HP (30 min rating): | 25.00 |
| HP Opt: | 35.00 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 24 |
| Num. Tools Opt: | 60 |
| Num. Axes: | 3 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
