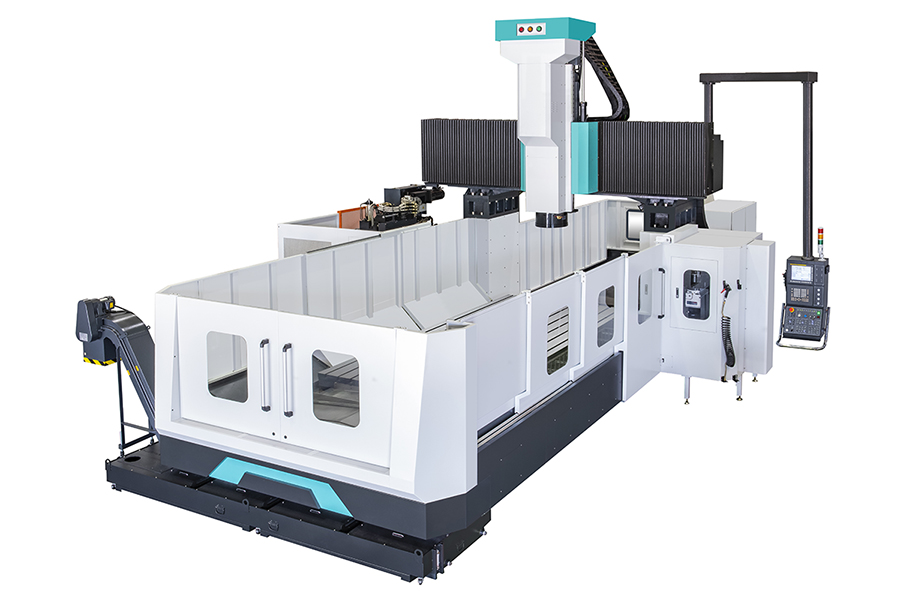

Feeler SVW-3217
The FEELER SVW-3217 heavy-duty double-column machining center combines rigidity, extended machining capacity, and versatility for demanding large-component applications. Its robust double-column construction provides excellent stability for heavy cutting and precision machining, while available milling head configurations expand its capabilities for complex and multi-face work. Designed to accommodate longer workpieces while reducing setups and improving productivity, the SVW-3217 provides a versatile platform for machining large, high-value components.
| Machine Type: | Machining Center |
|---|---|
| Num. of Axes: | 3 |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 118.100(L) x 55.100(W) |
|---|---|
| Max Workpiece Weight (lbs): | 22,046 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Vertical |
| Taper: | #50 |
| Taper Opt: | #40 |
| Top RPM: | 6,000 |
| Top RPM Opt: | 8,000 |
| HP (30 min rating): | 25.00 |
| HP Opt: | 35.00 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 24 |
| Num. Tools Opt: | 60 |
| Num. Axes: | 3 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
