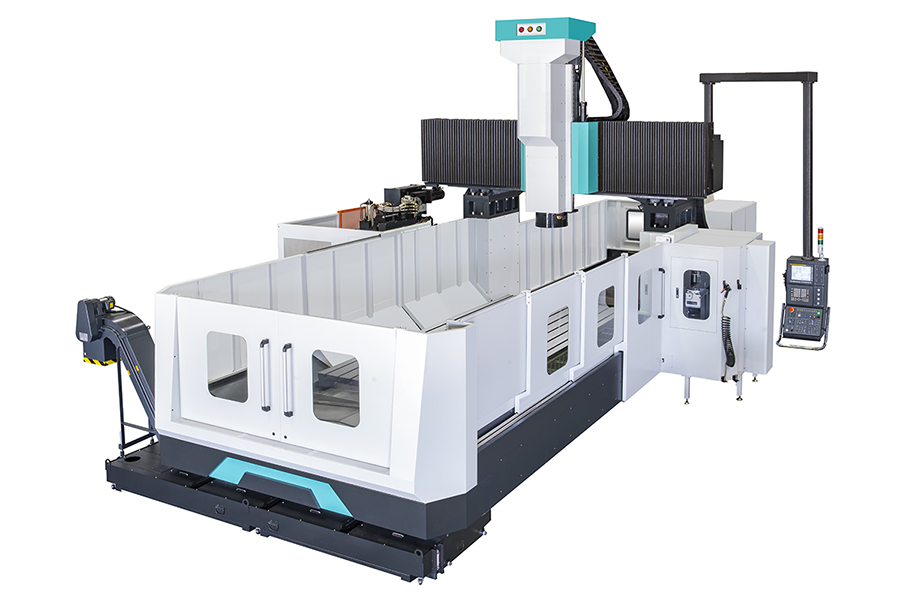

Feeler SVW-2822
Built for large parts, heavy cuts, and demanding production, the FEELER SVW-2822 combines the rigidity of a heavy-duty double-column platform with the capacity required for wider, oversized workpieces. Its robust machine construction provides excellent stability for aggressive roughing and precision finishing, while available milling head configurations add flexibility for complex and multi-face machining. The SVW-2822 is an ideal solution for manufacturers looking to reduce setups, consolidate operations, and increase productivity on large-component work.
| Machine Type: | Machining Center |
|---|---|
| Num. of Axes: | 3 |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 102.400(L) x 70.900(W) |
|---|---|
| Max Workpiece Weight (lbs): | 24,251 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Vertical |
| Taper: | #50 |
| Taper Opt: | #40 |
| Top RPM: | 6,000 |
| Top RPM Opt: | 8,000 |
| HP (30 min rating): | 25.00 |
| HP Opt: | 35.00 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 24 |
| Num. Tools Opt: | 60 |
| Num. Axes: | 3 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
