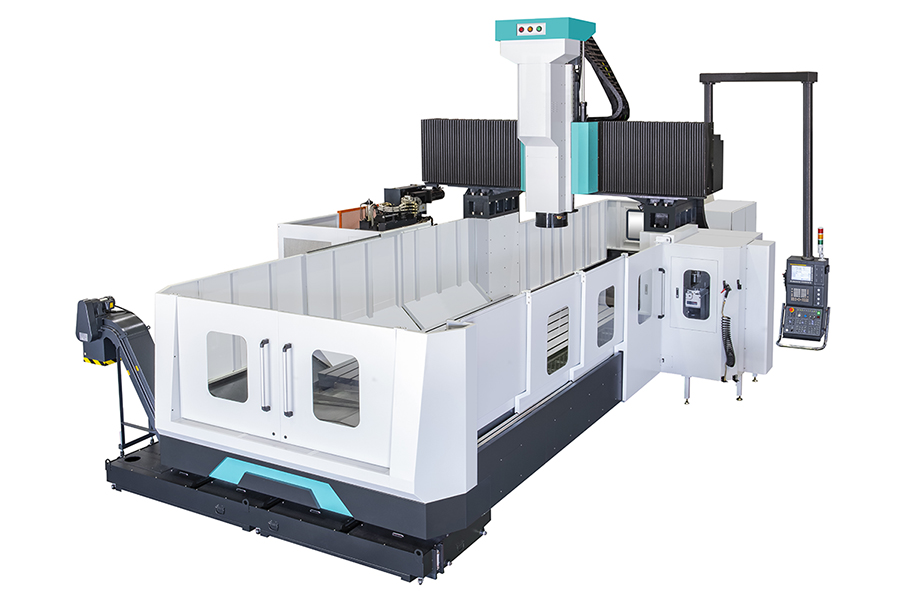

Feeler SVW-3222
The FEELER SVW-3222 heavy-duty double-column machining center combines rigidity, extended machining capacity, and versatility for demanding large-component applications. Its robust double-column construction provides excellent stability for heavy cutting and precision machining, while its generous machining envelope accommodates large, wide, and long workpieces. Available milling head configurations expand its capabilities for complex and multi-face work, helping manufacturers reduce setups and improve productivity when machining large, high-value components.
| Num. of Axes: | 3 |
|---|---|
| Operation Type: | CNC |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 118.100(L) x 70.870(W) |
|---|---|
| Max Workpiece Weight (lbs): | 26,455 |
| Num. Main Spindles: | 1 |
|---|---|
| Taper: | #50 |
| Taper Opt: | #40 |
| Top RPM: | 6,000 |
| Top RPM Opt: | 8,000 |
| HP (30 min rating): | 25.00 |
| HP Opt: | 35.00 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 24 |
| Num. Tools Opt: | 60 |
| Num. Axes: | 3 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
