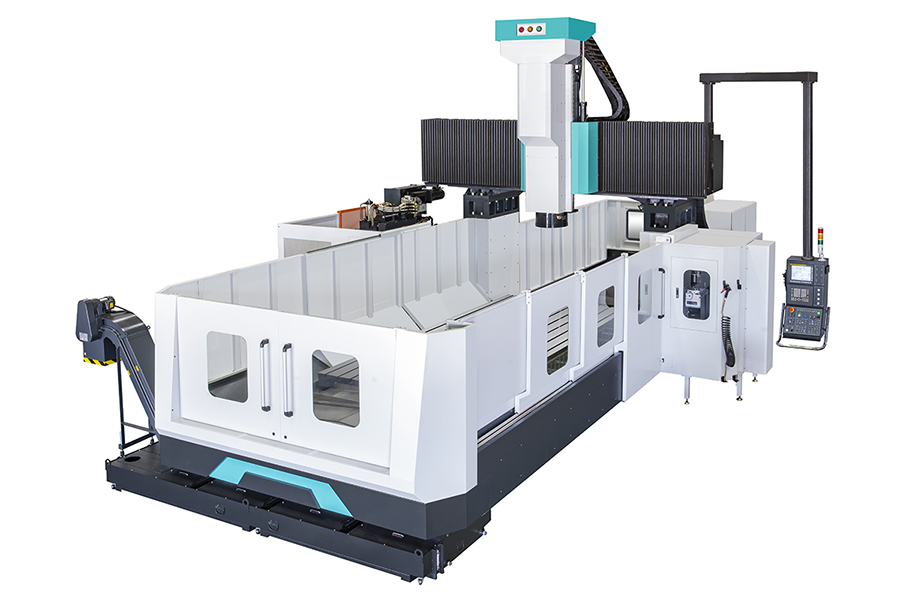

Feeler SVW-3223
The FEELER SVW-3223 is a heavy-duty double-column machining center engineered for demanding applications requiring exceptional rigidity, accuracy, and machining versatility. Its robust double-column construction and generous machining envelope provide a stable platform for heavy cutting and precision machining of large, wide, and complex components. Available milling head configurations further expand machining flexibility, allowing manufacturers to consolidate operations, reduce setups, and improve productivity when producing large, high-value parts.
| Machine Type: | Machining Center |
|---|---|
| Num. of Axes: | 3 |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 118.100(L) x 78.700(W) |
|---|---|
| Max Workpiece Weight (lbs): | 26,455 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Vertical |
| Taper: | #50 |
| Taper Opt: | #40 |
| Top RPM: | 6,000 |
| Top RPM Opt: | 8,000 |
| HP (30 min rating): | 25.00 |
| HP Opt: | 35.00 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 24 |
| Num. Tools Opt: | 60 |
| Num. Axes: | 3 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
