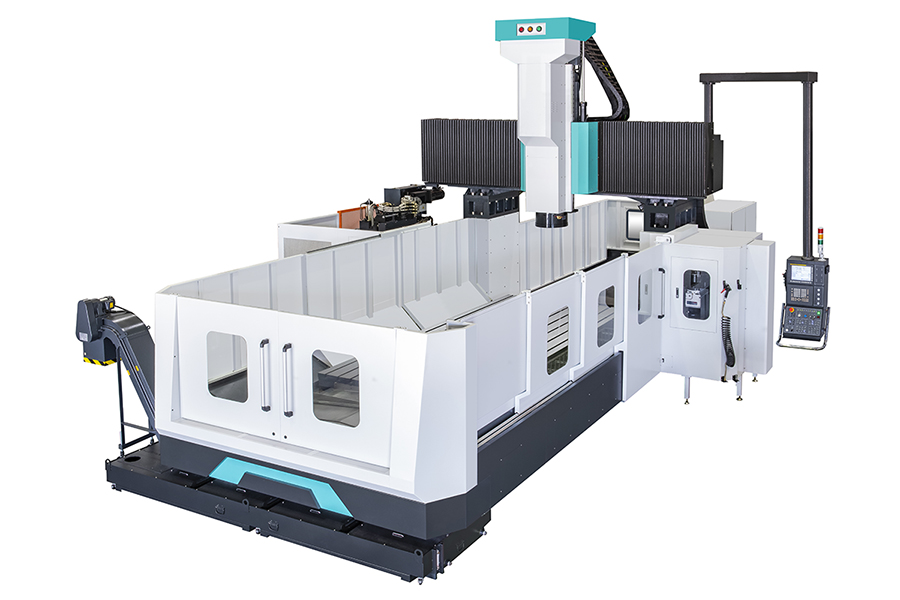

Feeler SVW-4223
Built for oversized workpieces, heavy cuts, and demanding production, the FEELER SVW-4223 combines the rigidity of a heavy-duty double-column platform with the extended capacity needed for large, wide, and long components. Its robust machine construction provides excellent stability for demanding roughing and precision machining operations, while available milling head configurations increase flexibility for complex and multi-face work. The SVW-4223 provides manufacturers with a versatile solution for reducing setups, consolidating machining operations, and improving productivity on large-component applications.
| Machine Type: | Machining Center |
|---|---|
| Num. of Axes: | 3 |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 157.500(L) x 78.700(W) |
|---|---|
| Max Workpiece Weight (lbs): | 33,069 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Vertical |
| Taper: | #50 |
| Taper Opt: | #40 |
| Top RPM: | 6,000 |
| Top RPM Opt: | 8,000 |
| HP (30 min rating): | 25.00 |
| HP Opt: | 35.00 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 24 |
| Num. Tools Opt: | 60 |
| Num. Axes: | 3 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
