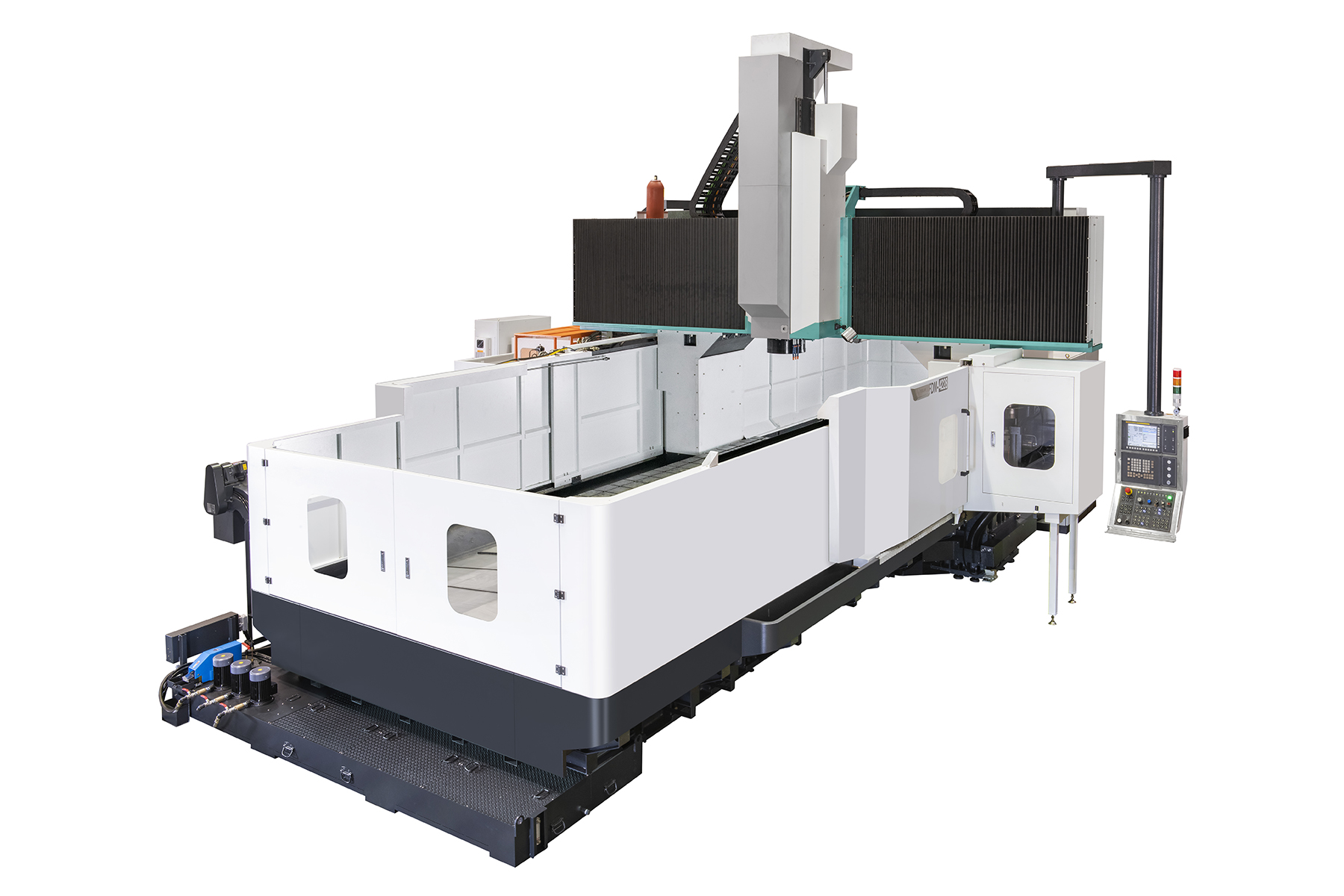

The FEELER FDM-4228 CNC Double Column Machining Center is engineered for high-rigidity, high-precision machining of large molds, dies, and structural components. Featuring a 4,200 mm X-axis travel, 2,700 mm Y-axis travel, and 800 mm standard Z-axis travel, with optional Z-axis travels up to 1,400 mm, the FDM-4228 provides the capacity and flexibility required for demanding large-part applications. Its 4,000 × 2,600 mm worktable supports loads up to 15 metric tons standard, with a 21-ton option, while the 2,800 mm distance between columns accommodates a wide range of sizable workpieces. Built with a rigid cast-iron structure, fully supported table, heavy-duty axis design, and advanced thermal management, the FDM-4228 delivers excellent stability, accuracy, and vibration resistance during heavy cutting. With a 6,000 rpm standard spindle, multiple spindle and tool magazine configurations, and optional specialized milling heads, the FDM-4228 is a versatile solution for mold and die, aero
space, automotive, and large-component manufacturing.
