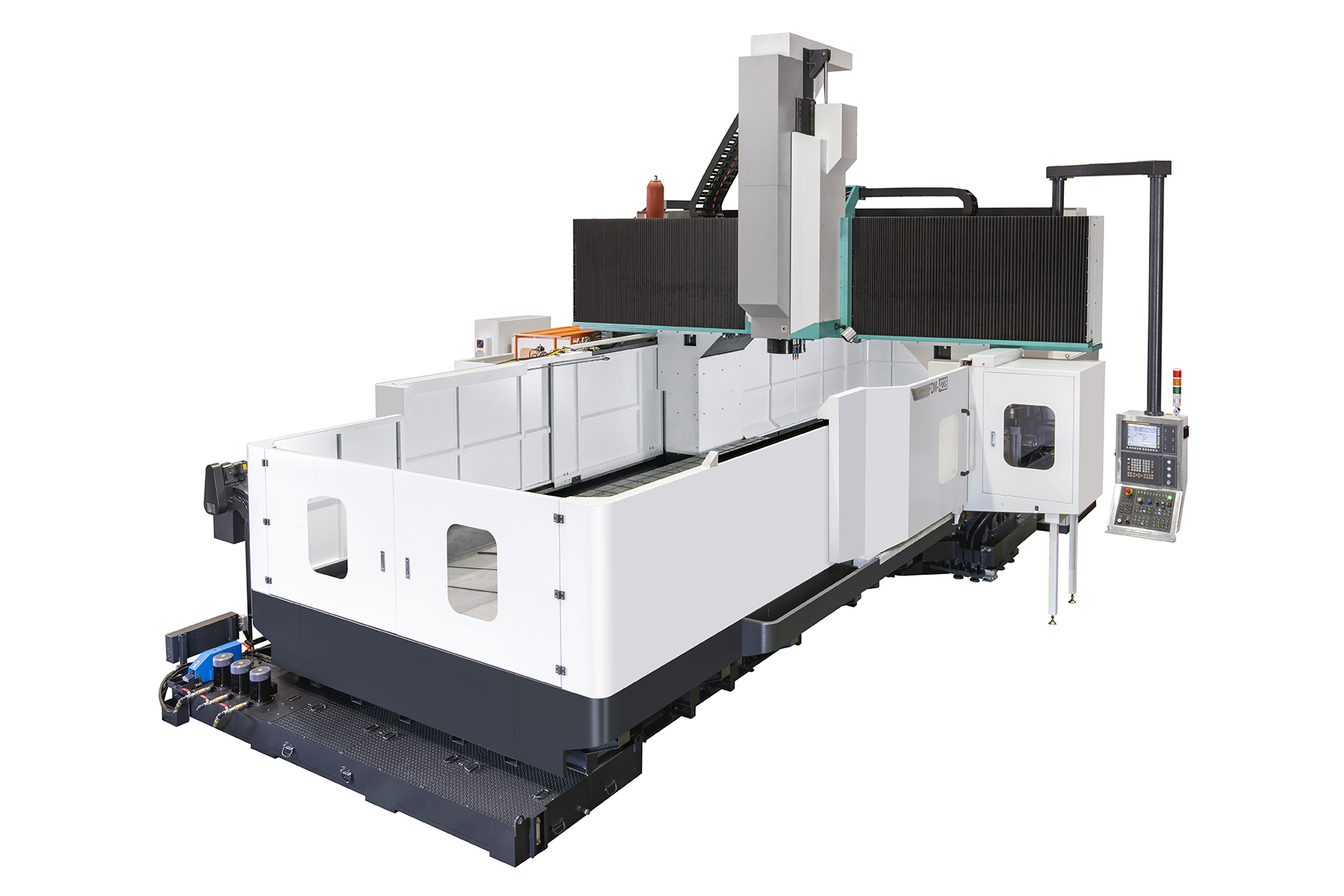

The FEELER FDM-5228 CNC Double Column Machining Center is engineered for high-rigidity, high-precision machining of large molds, dies, and structural components. With a 5,200 mm X-axis travel, 2,700 mm Y-axis travel, and 800 mm standard Z-axis travel, plus optional Z-axis travels up to 1,400 mm, the FDM-5228 provides substantial machining capacity for larger and longer workpieces. Its 5,000 × 2,600 mm worktable supports loads up to 18 metric tons standard, with a 23-ton option, while the 2,800 mm distance between columns provides ample clearance for demanding large-part applications. Built around a rigid cast-iron structure with a fully supported table, heavy-duty axis construction, and thermal management features, the FDM-5228 is designed to maintain stability and machining accuracy during both heavy cutting and precision operations. With a 6,000 rpm standard spindle, multiple spindle and tool magazine configurations, and optional specialized milling heads for expanded machining cap
ability, the FDM-5228 is a versatile solution for mold and die, aerospace, automotive, and large-component manufacturing. [FDM_EN | PDF]
