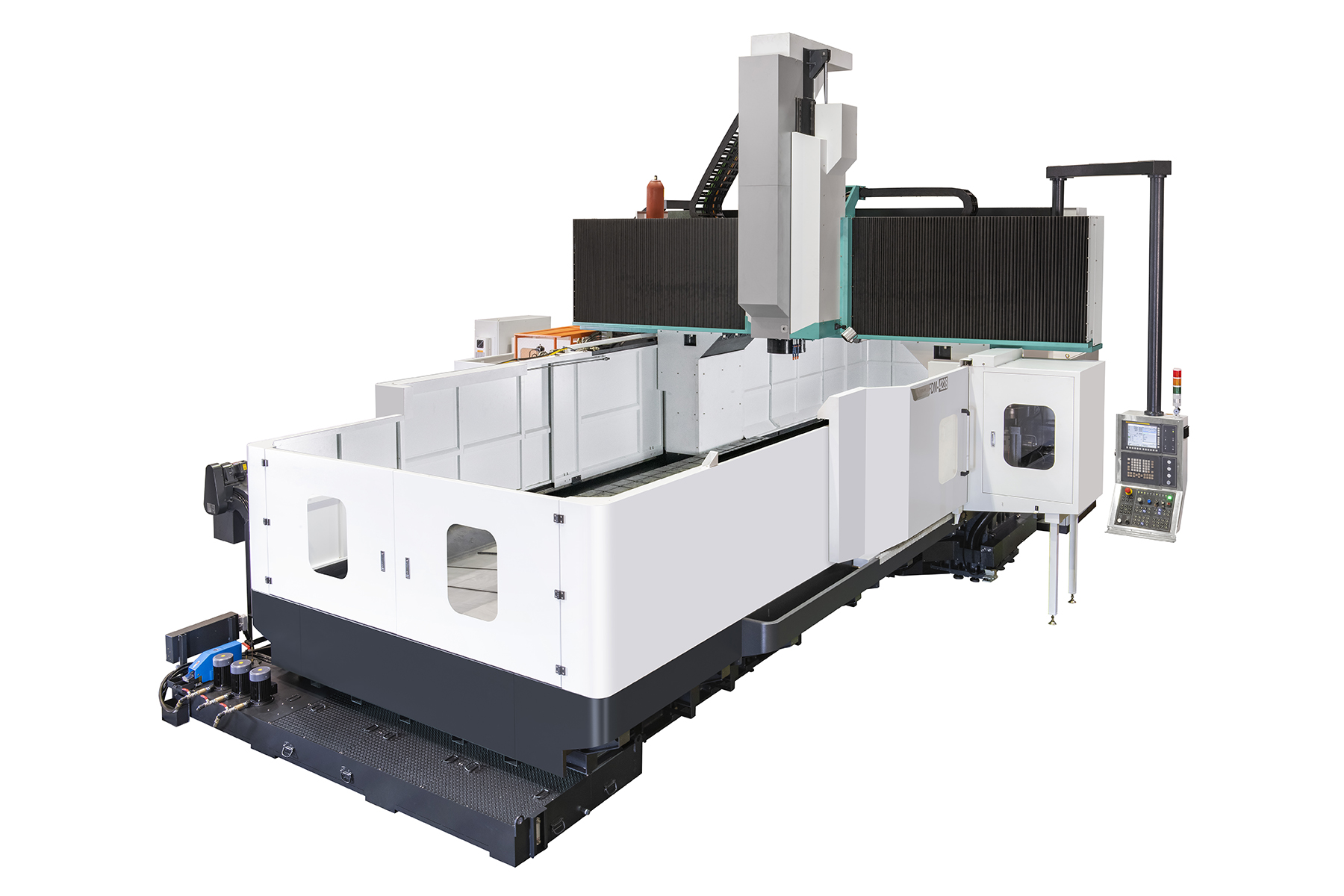

The FEELER FDM-8228 CNC Double Column Machining Center is engineered for high-rigidity, high-precision machining of exceptionally large molds, dies, and structural components. Featuring an 8,200 mm X-axis travel, 2,700 mm Y-axis travel, and 800 mm standard Z-axis travel, with optional Z-axis travels up to 1,400 mm, the FDM-8228 offers impressive capacity for long and heavy workpieces. Its 8,000 × 2,600 mm worktable supports loads up to 27 metric tons standard, with a 30-ton option, while the 2,800 mm distance between columns provides ample clearance for large-part machining. Built with a rigid cast-iron structure, fully supported table, heavy-duty axis construction, and thermal management features, the FDM-8228 is designed to maintain stability and accuracy throughout demanding machining operations. Its extended X-axis utilizes a rack-and-pinion drive system designed to minimize backlash and pitch error while reducing thermal deformation associated with long-travel ball screws. With
a 6,000 rpm standard spindle, multiple spindle and tool magazine configurations, and optional milling heads for expanded machining capabilities, the FDM-8228 is a powerful solution for mold and die, aerospace, automotive, and large structural component manufacturing. [FDM_EN | PDF]
