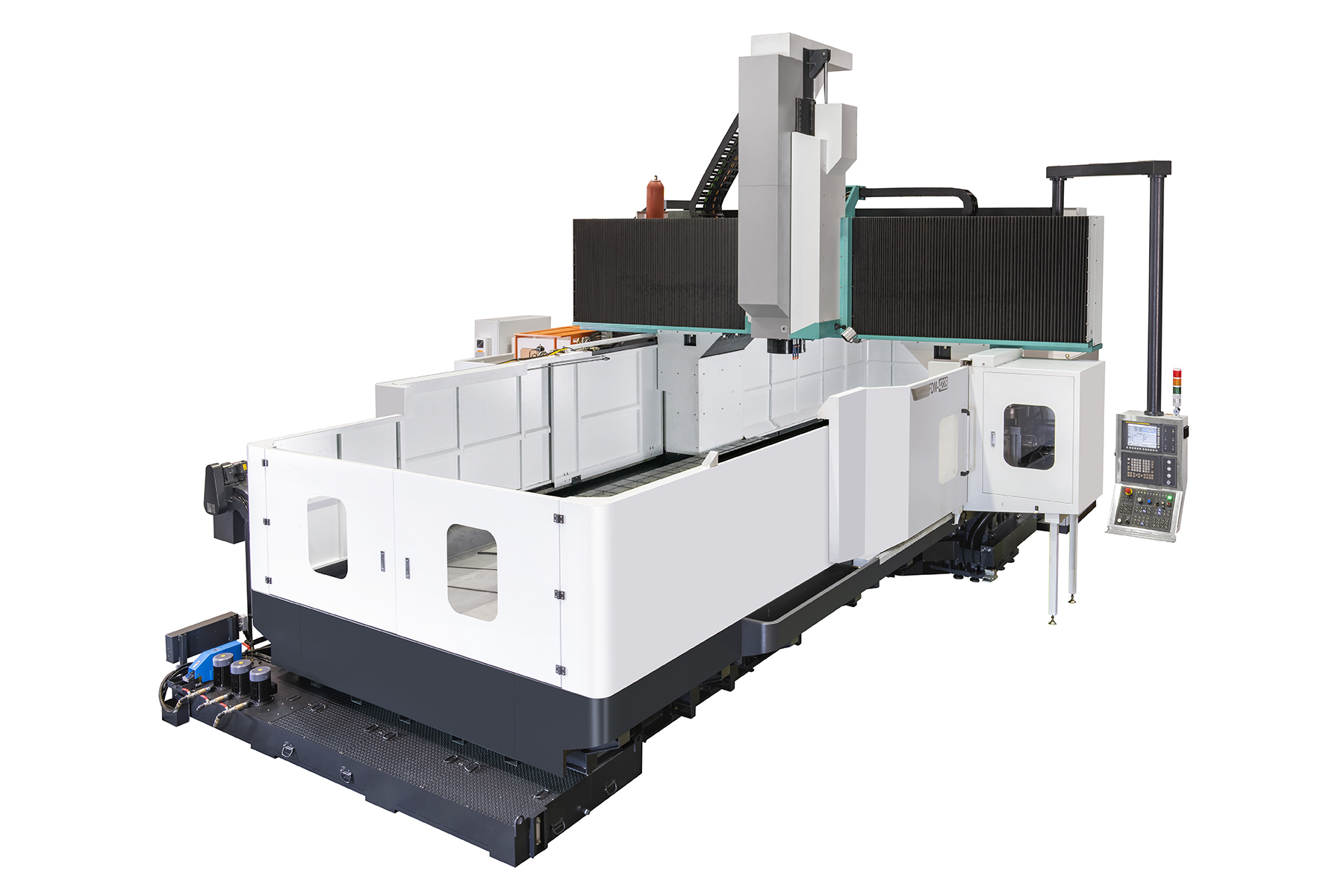

The FEELER FDM-4232 CNC Double Column Machining Center is engineered for high-rigidity, high-precision machining of large molds, dies, and structural components. Featuring a 4,200 mm X-axis travel, 3,100 mm Y-axis travel, and 800 mm standard Z-axis travel, with optional Z-axis travels up to 1,400 mm, the FDM-4232 offers increased cross-axis capacity for machining wider and more complex workpieces. Its 4,000 × 2,600 mm worktable supports loads up to 21 metric tons standard, with a 24-ton option, while the wider 3,200 mm distance between columns provides additional clearance for oversized components. Built with a rigid cast-iron structure, fully supported table, heavy-duty axis construction, and thermal management features, the FDM-4232 delivers excellent stability, accuracy, and vibration resistance during demanding heavy-cutting and precision machining operations. With a 6,000 rpm standard spindle, multiple spindle and tool magazine configurations, and optional specialized milling he
ads for expanded machining capability, the FDM-4232 is a versatile solution for mold and die, aerospace, automotive, and large structural component manufacturing. [FDM_EN | PDF]
