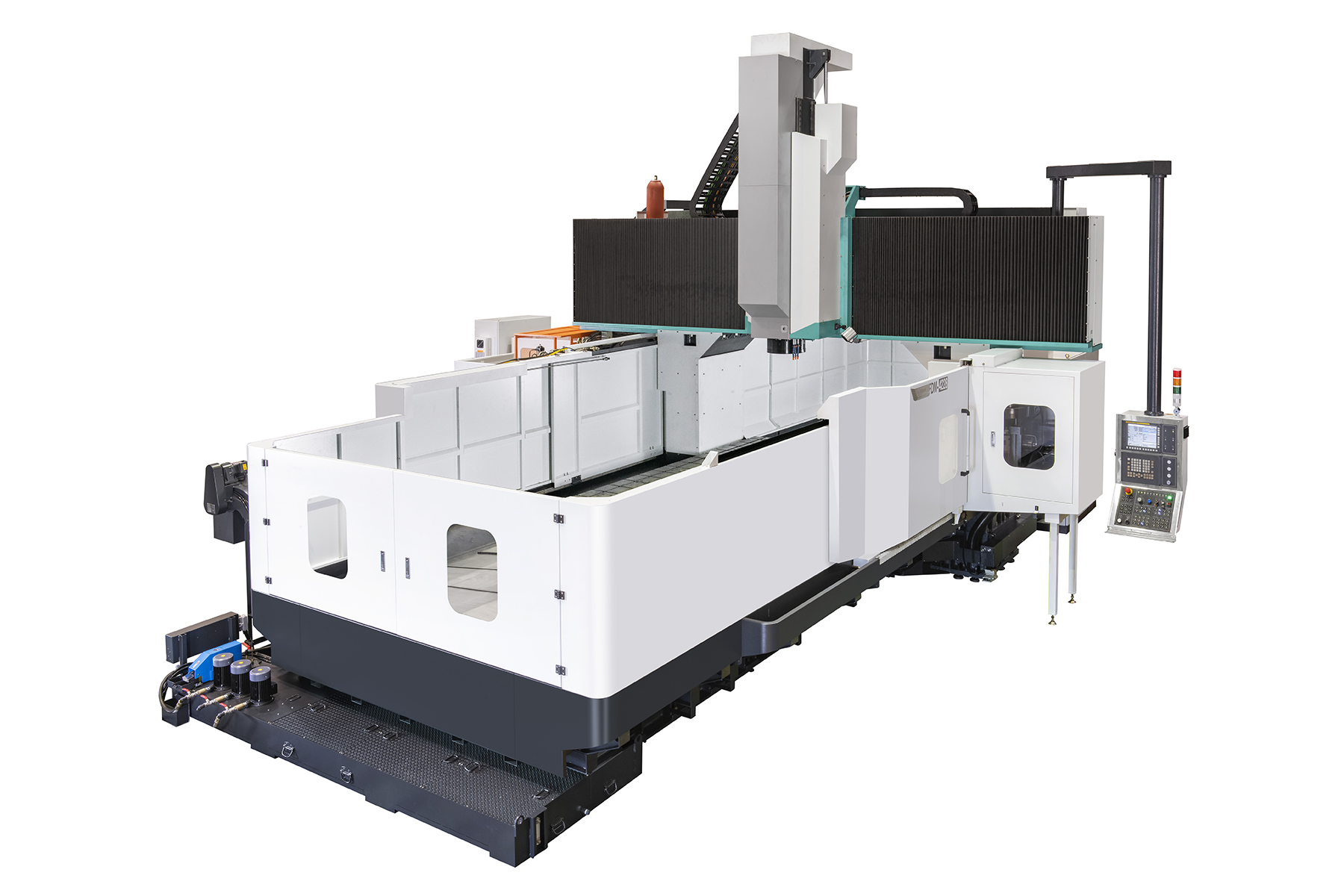

The FEELER FDM-7232 CNC Double Column Machining Center is engineered for high-rigidity, high-precision machining of large molds, dies, and structural components. Featuring a 7,200 mm X-axis travel, 3,100 mm Y-axis travel, and 800 mm standard Z-axis travel, with optional Z-axis travels up to 1,400 mm, the FDM-7232 provides extensive machining capacity for long, wide, and heavy workpieces. Its 7,000 × 2,600 mm worktable supports loads up to 27 metric tons standard, with a 30-ton option, while the 3,200 mm distance between columns provides generous clearance for oversized components. Built with a rigid cast-iron structure, fully supported table, heavy-duty axis construction, and thermal management features, the FDM-7232 delivers excellent stability and accuracy during demanding heavy-cutting and precision machining operations. Its extended X-axis incorporates a rack-and-pinion drive system designed to minimize backlash and pitch error while reducing thermal deformation associated with l
ong-travel ball screws. With a 6,000 rpm standard spindle, multiple spindle and tool magazine configurations, and optional specialized milling heads for expanded machining capabilities, the FDM-7232 is a powerful and versatile solution for mold and die, aerospace, automotive, and large structural component manufacturing.
