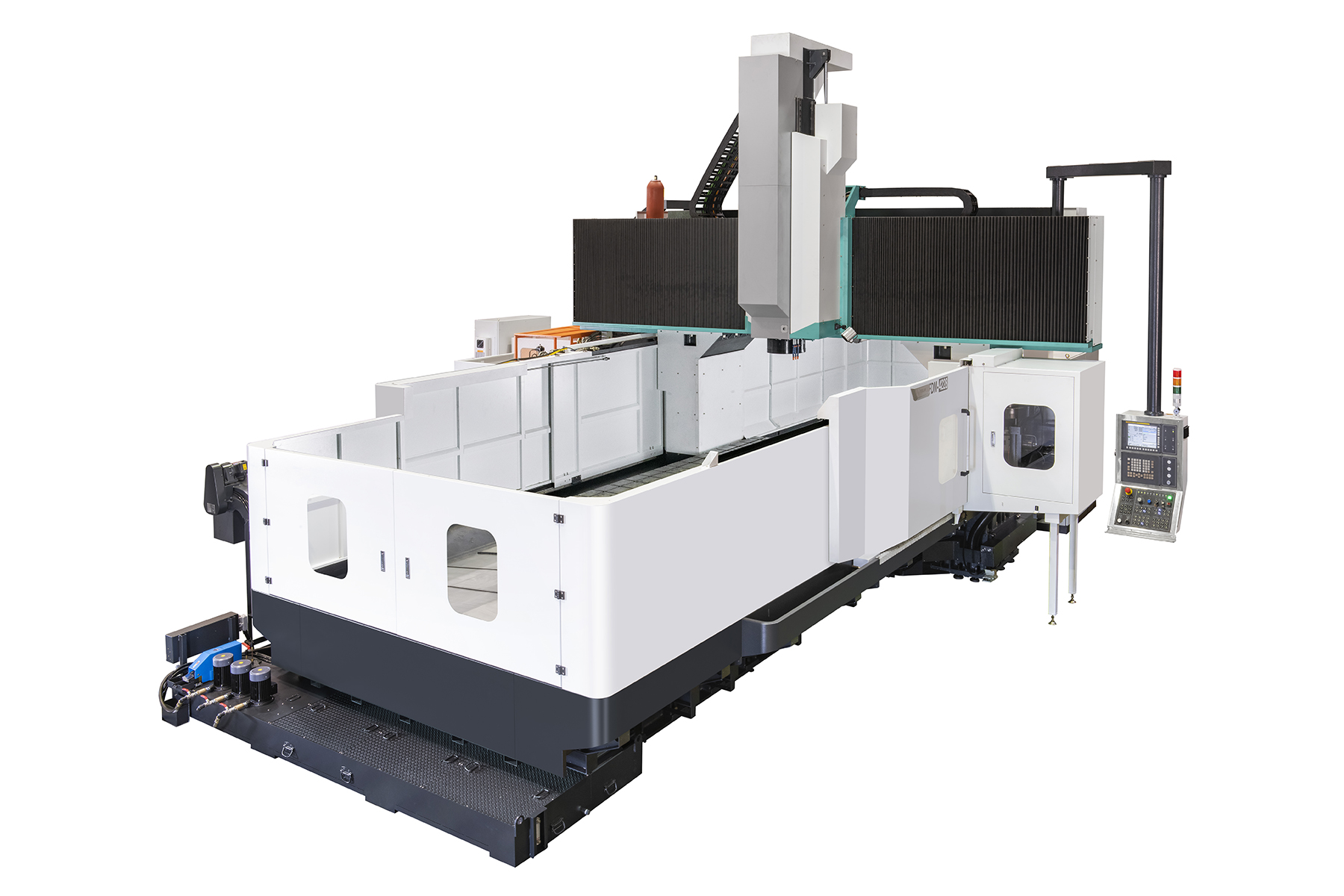

The FEELER FDM-8232 CNC Double Column Machining Center is engineered for high-rigidity, high-precision machining of exceptionally large molds, dies, and structural components. Featuring an 8,200 mm X-axis travel, 3,100 mm Y-axis travel, and 800 mm standard Z-axis travel, with optional Z-axis travels up to 1,400 mm, the FDM-8232 provides extensive machining capacity for long, wide, and heavy workpieces. Its 8,000 × 2,600 mm worktable supports loads up to 30 metric tons, while the 3,200 mm distance between columns provides generous clearance for oversized components. Built with a rigid cast-iron structure, fully supported table, heavy-duty axis construction, and thermal management features, the FDM-8232 is designed to maintain excellent stability and accuracy during demanding heavy-cutting and precision machining operations. Its extended X-axis incorporates a rack-and-pinion drive system designed to minimize backlash and pitch error while reducing thermal deformation associated with lo
ng-travel ball screws. With a 6,000 rpm standard spindle, multiple spindle and tool magazine configurations, and optional specialized milling heads for expanded machining capabilities, the FDM-8232 is a powerful solution for mold and die, aerospace, automotive, and large structural component manufacturing.
