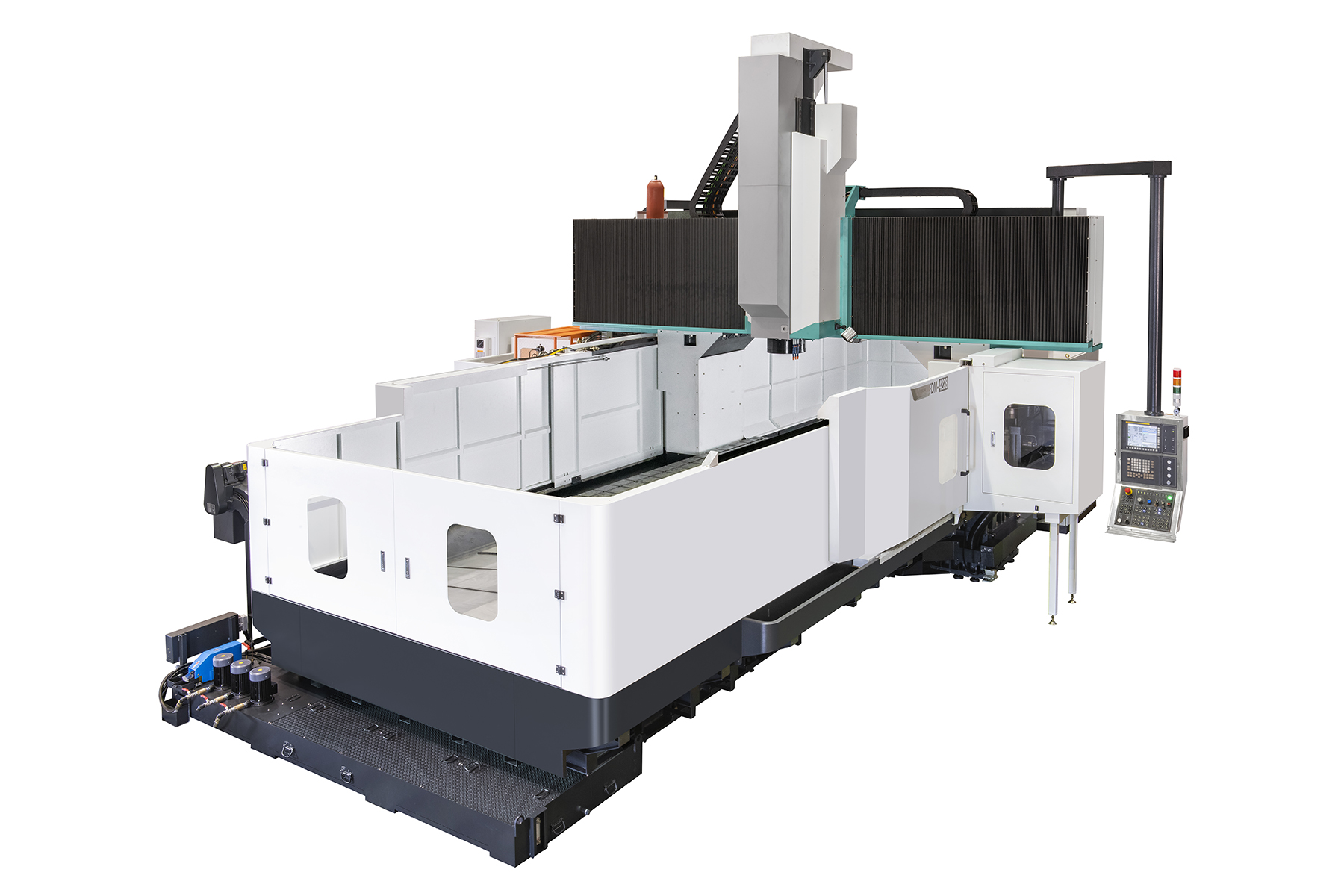

The FEELER FDM-4235 CNC Double Column Machining Center is engineered for high-rigidity, high-precision machining of large molds, dies, aerospace components, and structural parts. Featuring a 4,200 mm X-axis travel, 3,400 mm Y-axis travel, and 800 mm standard Z-axis travel, with optional Z-axis travels up to 1,400 mm, the FDM-4235 provides excellent capacity for wide and complex workpieces. Its 4,000 × 3,000 mm worktable provides a large working platform, while the 3,500 mm distance between columns offers additional clearance for oversized components. Built around a rigid cast-iron, double-column structure with a fully supported table, heavy-duty axis construction, and thermal management features, the FDM-4235 is designed to deliver outstanding stability, accuracy, and vibration resistance during heavy cutting and precision machining. With a 6,000 rpm standard spindle, multiple spindle and automatic tool changer configurations, and optional specialized milling heads for expanded five-
face machining capability, the FDM-4235 is a versatile production solution for mold and die, aerospace, automotive, and large structural component manufacturing. [FDM_EN | PDF]
