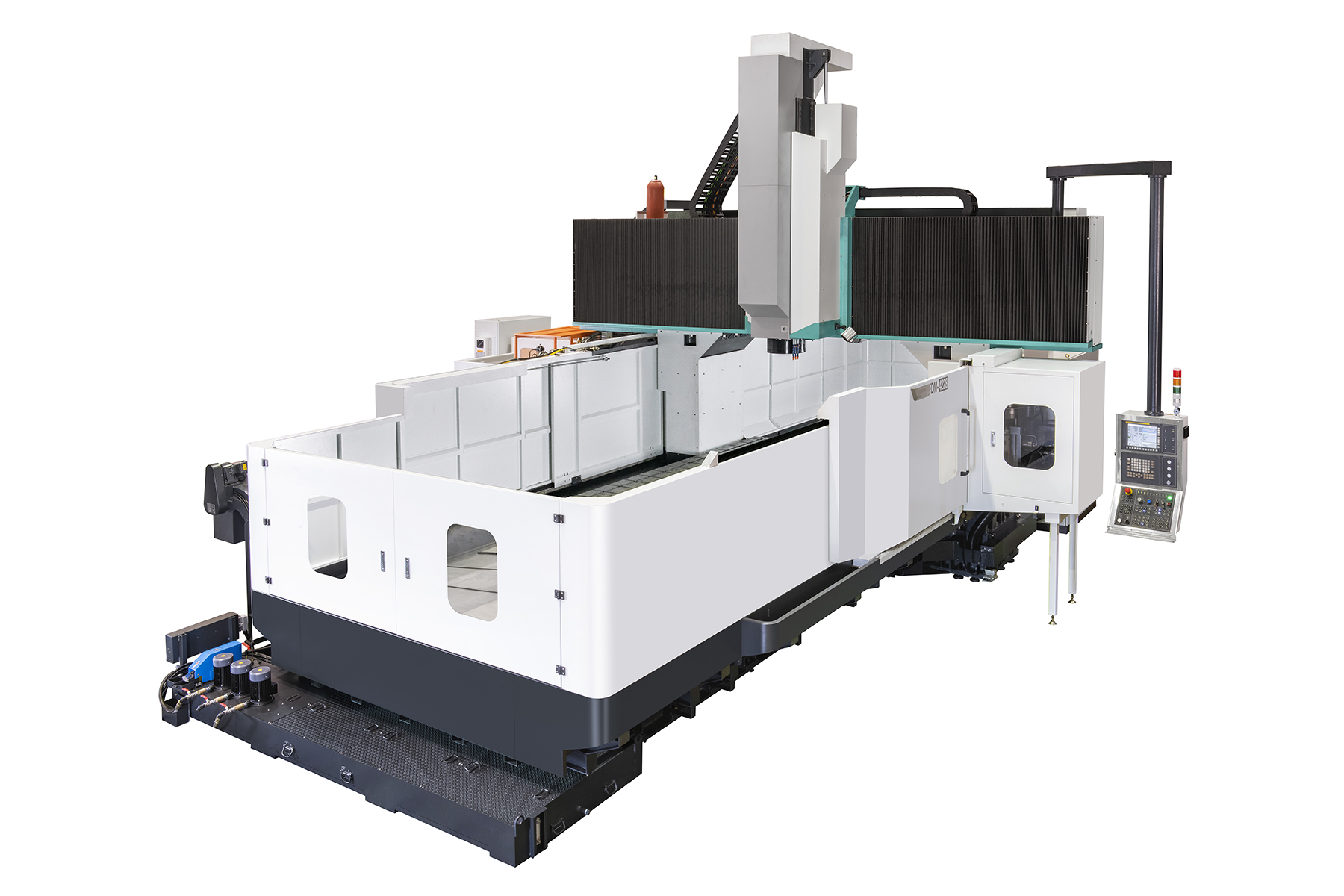

The FEELER FDM-8235 CNC Double Column Machining Center is engineered for high-rigidity, high-precision machining of exceptionally large molds, dies, aerospace components, and structural parts. Featuring an 8,200 mm X-axis travel, 3,400 mm Y-axis travel, and 800 mm standard Z-axis travel, with optional Z-axis travels up to 1,400 mm, the FDM-8235 delivers maximum machining capacity within the FDM lineup for long, wide, and heavy workpieces. Its 8,000 × 3,000 mm worktable supports loads up to 30 metric tons, while the 3,500 mm distance between columns provides generous clearance for oversized components. Built with a rigid cast-iron structure, fully supported table, heavy-duty axis construction, and thermal management features, the FDM-8235 is designed to maintain excellent stability and accuracy during demanding heavy-cutting and precision machining operations. Its extended X-axis incorporates a rack-and-pinion drive system designed to minimize backlash and pitch error while reducing t
he effects of thermal deformation over long travels. With a 6,000 rpm standard spindle, multiple spindle and automatic tool changer configurations, and optional specialized milling heads for expanded five-face machining capability, the FDM-8235 is a powerful solution for mold and die, aerospace, automotive, and large structural component manufacturing. [FDM_EN | PDF]
