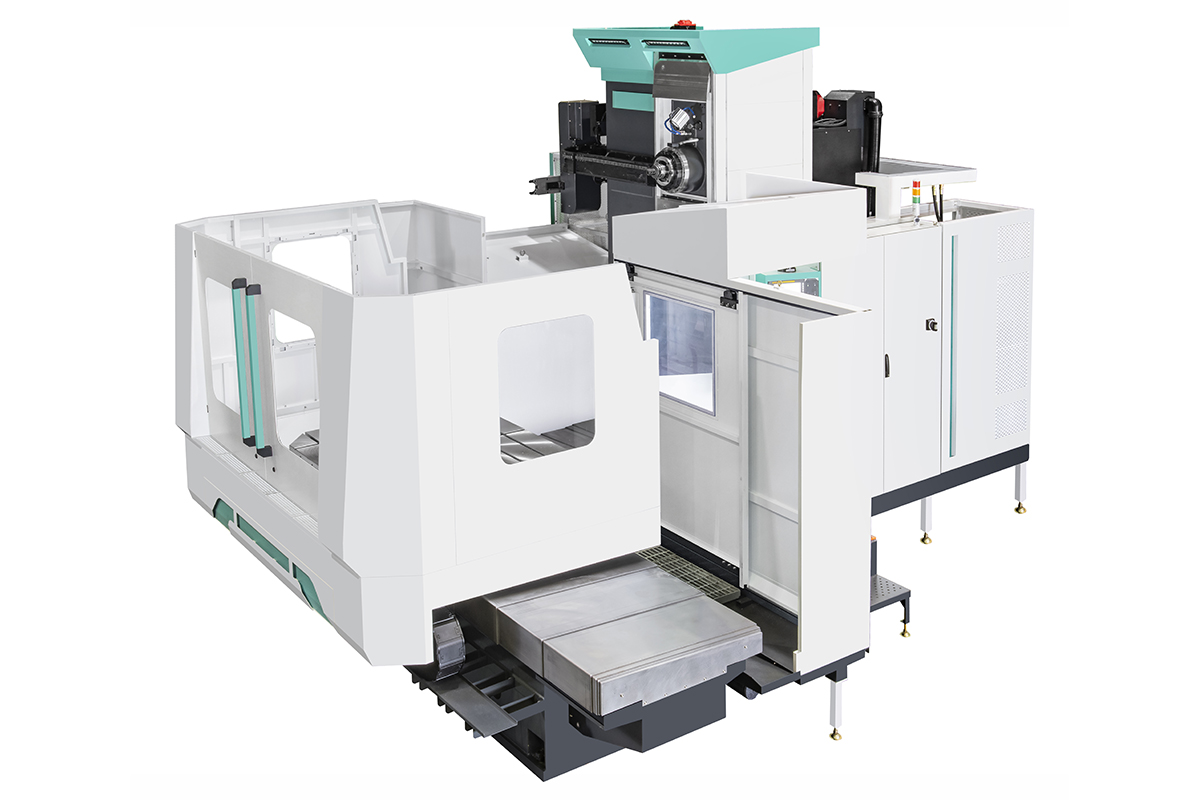

Feeler SHM-11020RF
FEELER SHB Series CNC Horizontal Boring & Milling Machines are engineered for precision machining of large, heavy, and complex components where rigidity, accuracy, and productivity are critical. The series combines robust cast-iron construction, high-performance 110 mm or 130 mm boring spindles, heavy-duty rotary tables with 0.001° indexing, and generous axis travels to support demanding boring, milling, drilling, and heavy-cutting applications. Available in multiple table sizes and configurations, including movable-column and long-table designs, SHB machines accommodate workpieces ranging from medium-sized components to loads of up to 20 tons. Precision linear scales, high-rigidity guideway systems, automatic tool changers, and CNC options from FANUC, MITSUBISHI, SIEMENS, and HEIDENHAIN make the SHB Series a versatile solution for manufacturers seeking reliable, high-accuracy machining of large parts.
| Machine Type: | Boring Mill |
|---|---|
| Num. of Axes: | 4 |
| Operation Type: | CNC |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 39.370(L) x 47.240(W) |
|---|---|
| Max Workpiece Weight (lbs): | 11,023 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Horizontal |
| Taper: | #50 |
| Top RPM: | 3,200 |
| Top RPM Opt: | 2,500 |
| HP (30 min rating): | 24.80 |
| HP Opt: | 34.90 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 40 |
| Num. Tools Opt: | 60 |
| Num. Axes: | 4 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Num. Axes Opt: | 5 | ||||||||||||||||||
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
