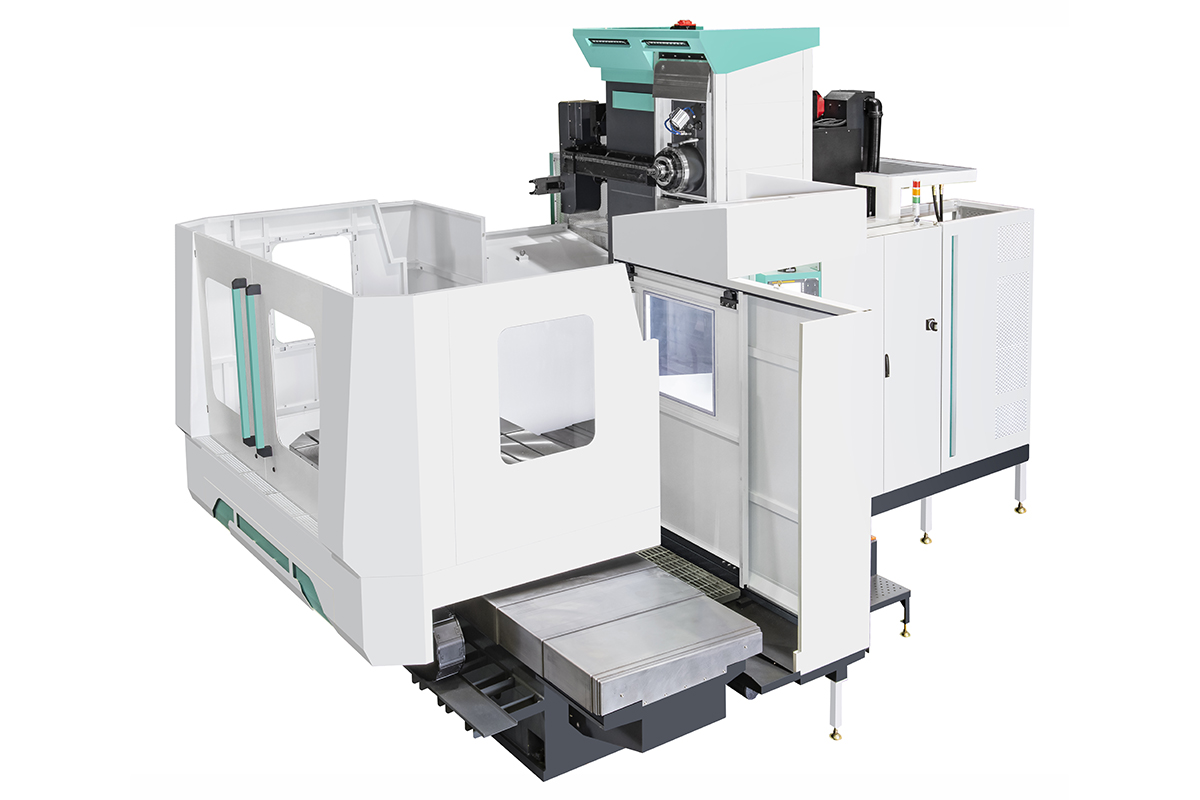

Feeler SHB-11040RS
The SHB-11040RS is a heavy-duty CNC horizontal boring and milling machine designed to deliver high-precision performance on large and complex workpieces. With an extended 4,000 mm X-axis travel, 1,800 mm Y-axis travel, 1,500 mm Z-axis travel, and 500 mm W-axis spindle travel, it offers exceptional machining capacity while maintaining outstanding rigidity and accuracy. Its robust moving-column construction, high-torque 110 mm spindle, and precision rotary table enable efficient machining of oversized components commonly found in the aerospace, energy, transportation, and heavy equipment industries. Equipped with precision linear scales, advanced spindle lubrication technology, and configurable CNC controls from FANUC, Mitsubishi, Siemens, or Heidenhain, the SHB-11040RS delivers reliable performance for demanding boring, milling, drilling, and contouring applications. Designed for long-term accuracy and productivity, it provides manufacturers with the stability, flexibility, and cuttin g power required for today's most challenging machining operations.
| Machine Type: | Boring Mill |
|---|---|
| Num. of Axes: | 4 |
| Operation Type: | CNC |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 55.100(L) x 63.000(W) |
|---|---|
| Table Size L x W (in.) Opt: | 63.000(L) x 70.900(W) |
| Max Workpiece Weight (lbs): | 15,432 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Horizontal |
| Taper: | #50 |
| Top RPM: | 3,200 |
| Top RPM Opt: | 2,500 |
| HP (30 min rating): | 34.90 |
| HP Opt: | 49.70 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 40 |
| Num. Tools Opt: | 60 |
| Num. Axes: | 4 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Num. Axes Opt: | 5 | ||||||||||||||||||
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
