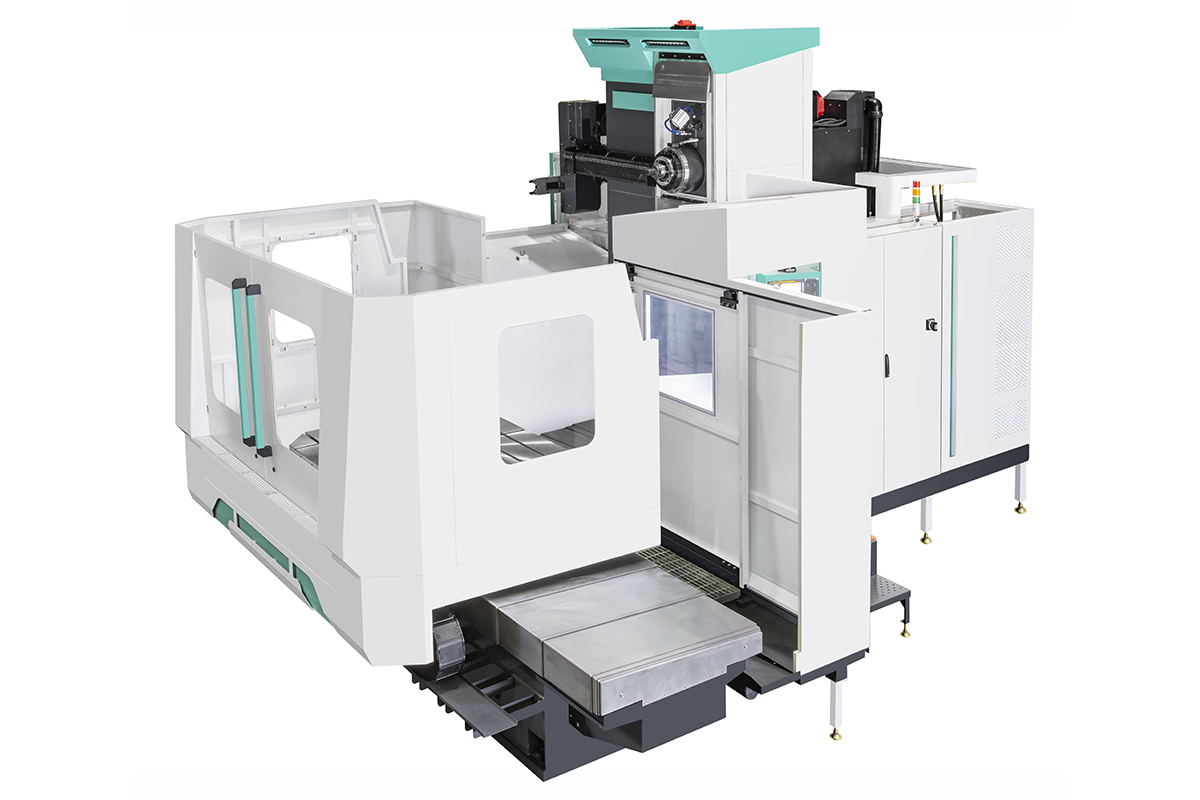

Feeler SHB-13030RM
The SHB-13030RM is a high-performance CNC horizontal boring and milling machine designed to deliver exceptional precision, rigidity, and efficiency for machining large and complex workpieces. Featuring a powerful 130 mm spindle diameter, 3,000 mm X-axis travel, 2,000 mm Y-axis travel, 1,800 mm Z-axis travel, and 700 mm W-axis quill travel, it provides an ideal balance of work envelope capacity and machining accuracy. Its robust cast-iron construction, precision spindle system, and high-accuracy rotary table ensure outstanding stability during demanding boring, milling, drilling, and contouring operations. Engineered for industries such as energy, aerospace, transportation, and heavy equipment manufacturing, the SHB-13030RM incorporates advanced CNC controls, precision feedback systems, and optimized structural design to maintain consistent performance and long-term reliability. Combining heavy-duty cutting capability with superior accuracy and productivity, the SHB-13030RM offers man ufacturers a dependable solution for producing large, high-value components with confidence.
| Machine Type: | Boring Mill |
|---|---|
| Num. of Axes: | 4 |
| Operation Type: | CNC |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 70.900(L) x 78.700(W) |
|---|---|
| Max Workpiece Weight (lbs): | 33,069 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Horizontal |
| Taper: | #50 |
| Top RPM: | 2,700 |
| Top RPM Opt: | 2,000 |
| HP (30 min rating): | 34.90 |
| HP Opt: | 49.70 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 40 |
| Num. Tools Opt: | 60 |
| Num. Axes: | 4 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Num. Axes Opt: | 5 | ||||||||||||||||||
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
