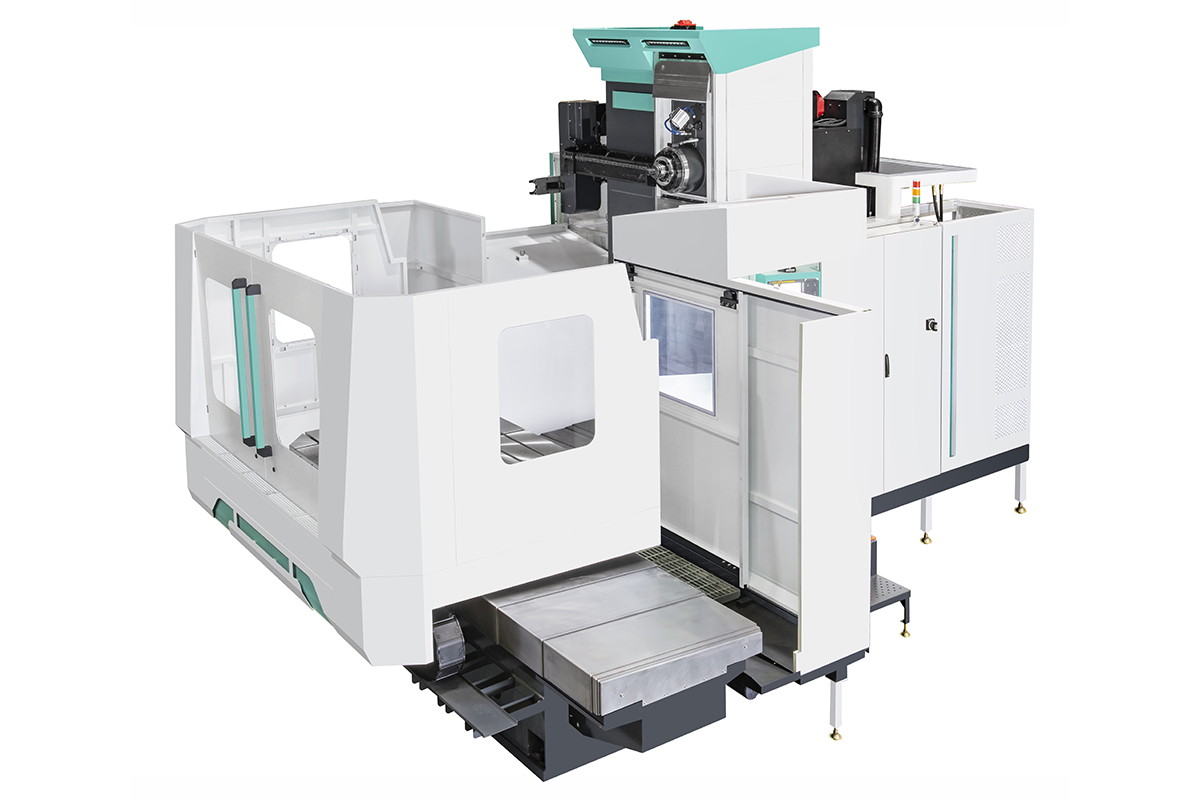

Feeler SHB-13040RM
The SHB-13040RM is a robust CNC horizontal boring and milling machine engineered for high-precision machining of large and demanding workpieces. Equipped with a powerful 130 mm spindle diameter, 4,000 mm X-axis travel, 2,000 mm Y-axis travel, 1,800 mm Z-axis travel, and 700 mm W-axis quill travel, it delivers the extended machining range and rigidity required for oversized components and complex machining operations. Its heavy-duty cast-iron construction, high-torque spindle system, and precision rotary table provide exceptional stability and accuracy for boring, milling, drilling, and contouring applications. Designed to serve industries such as energy, aerospace, shipbuilding, transportation, and heavy equipment manufacturing, the SHB-13040RM incorporates advanced CNC control technology, precision feedback systems, and optimized structural design to ensure long-term reliability and consistent machining performance. Combining a generous work envelope with outstanding cutting capabil ity and precision, the SHB-13040RM is an ideal solution for manufacturers seeking efficient, high-accuracy production of large-scale components.
| Machine Type: | Boring Mill |
|---|---|
| Num. of Axes: | 4 |
| Operation Type: | CNC |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 70.900(L) x 78.700(W) |
|---|---|
| Max Workpiece Weight (lbs): | 33,069 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Horizontal |
| Taper: | #50 |
| Top RPM: | 2,700 |
| Top RPM Opt: | 2,000 |
| HP (30 min rating): | 34.90 |
| HP Opt: | 49.70 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 40 |
| Num. Tools Opt: | 60 |
| Num. Axes: | 4 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Num. Axes Opt: | 5 | ||||||||||||||||||
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
