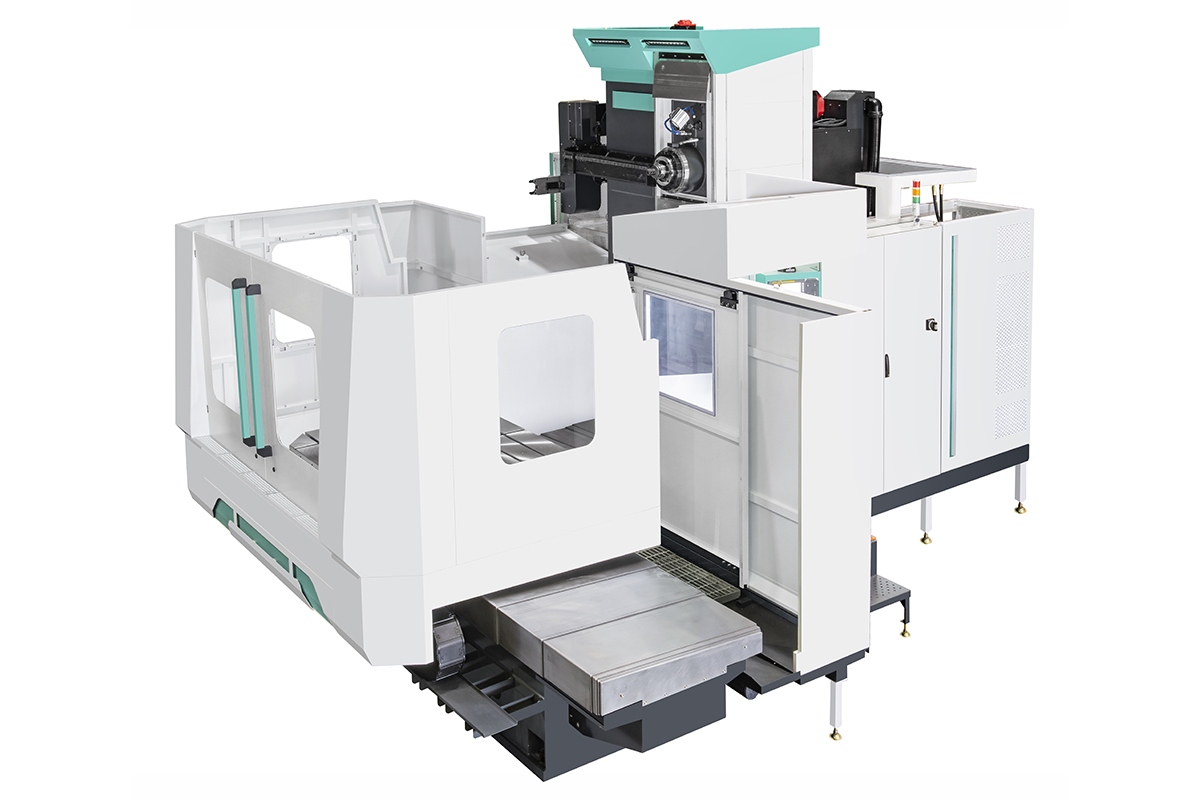

Feeler SHB-13030RL
The SHB-13030RL is a large-capacity CNC horizontal boring and milling machine engineered for precision machining of oversized and complex workpieces that demand exceptional accuracy, rigidity, and reliability. Featuring a powerful 130 mm spindle diameter, 3,000 mm X-axis travel, extended vertical and cross-axis capacities, and a long-reach quill design, it is ideally suited for industries such as energy, aerospace, shipbuilding, construction equipment, and heavy machinery manufacturing. Its rigid cast-iron structure, high-torque spindle system, and precision rotary table provide outstanding stability during heavy cutting, deep boring, milling, drilling, and multi-face machining operations. Equipped with advanced CNC control options, high-resolution feedback systems, and optimized machine geometry, the SHB-13030RL delivers consistent accuracy, superior surface finishes, and dependable long-term performance. Combining a spacious work envelope with exceptional machining precision and pr oductivity, the SHB-13030RL is an ideal solution for manufacturers seeking efficient, high-accuracy processing of large and demanding components.
| Machine Type: | Boring Mill |
|---|---|
| Num. of Axes: | 4 |
| Operation Type: | CNC |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 126.000(L) x 70.900(W) |
|---|---|
| Max Workpiece Weight (lbs): | 33,069 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Horizontal |
| Taper: | #50 |
| Top RPM: | 2,700 |
| Top RPM Opt: | 2,000 |
| HP (30 min rating): | 34.90 |
| HP Opt: | 49.70 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 40 |
| Num. Tools Opt: | 60 |
| Pallet Changer Available: | None |
| Num. Axes: | 4 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Num. Axes Opt: | 5 | ||||||||||||||||||
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
