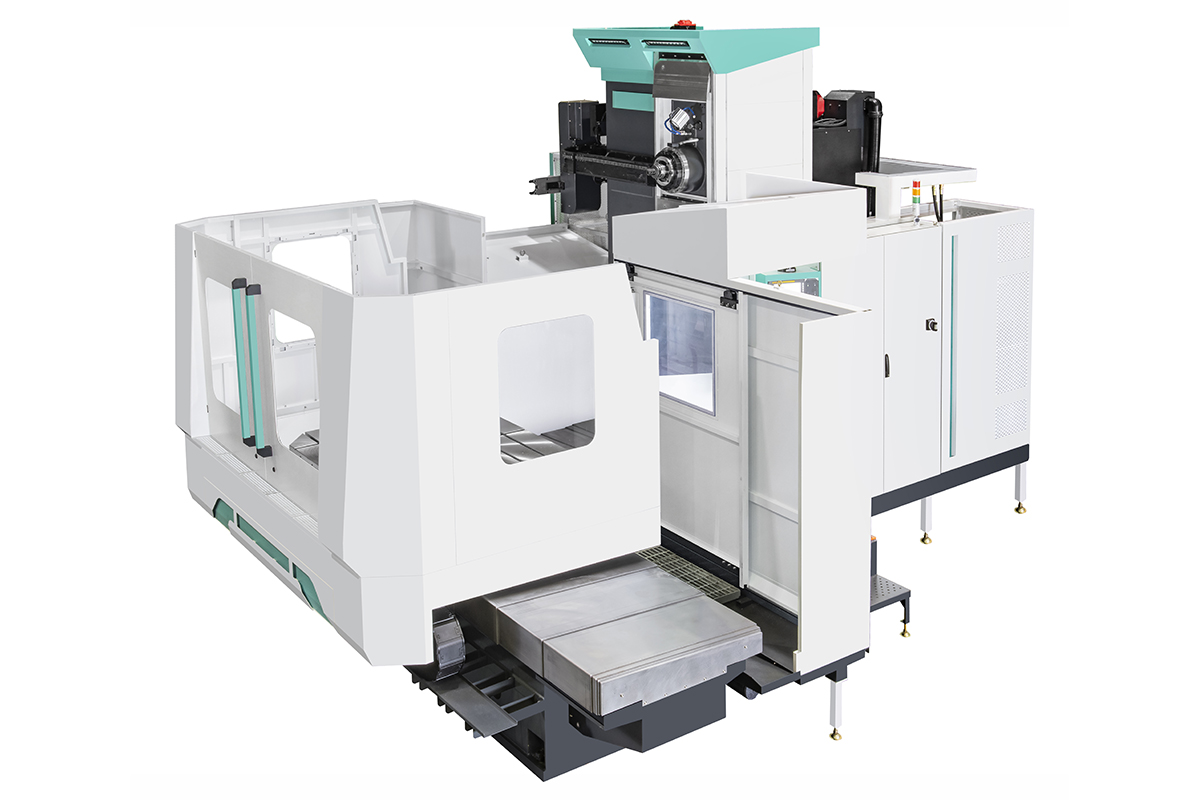

SHB-11020S

Feeler SHB-11020S

The SHB-11020S is a compact yet highly capable CNC horizontal boring and milling machine designed to deliver precision, rigidity, and efficiency for a wide range of machining applications. Equipped with a 110 mm spindle diameter, 2,000 mm X-axis travel, and a robust machine structure, it provides excellent stability and accuracy when machining medium to large-sized workpieces. Its powerful spindle system, precision guideways, and advanced CNC control options enable efficient boring, milling, drilling, and contouring operations while maintaining exceptional dimensional accuracy and surface finish quality. Designed for industries such as mold & die, energy, transportation, and general engineering, the SHB-11020S combines reliable performance, versatile machining capability, and long-term durability to help manufacturers maximize productivity and achieve consistent results in demanding production environments.

The SHB-11020S is a compact yet highly capable CNC horizontal boring and milling machine designed to deliver precision, rigidity, and efficiency for a wide range of machining applications. Equipped with a 110 mm spindle diameter, 2,000 mm X-axis travel, and a robust machine structure, it provides excellent stability and accuracy when machining medium to large-sized workpieces. Its powerful spindle system, precision guideways, and advanced CNC control options enable efficient boring, milling, drilling, and contouring operations while maintaining exceptional dimensional accuracy and surface finish quality. Designed for industries such as mold & die, energy, transportation, and general engineering, the SHB-11020S combines reliable performance, versatile machining capability, and long-term durability to help manufacturers maximize productivity and achieve consistent results in demanding production environments.
Machine Type: Boring Mill
Num. of Axes: 4
Operation Type: CNC
CNC Brand: Fanuc
CNC Brand Opt: Siemens
Table/Work Support
Table Size L x W (in.): 78.700(L) x 55.100(W)
Max Workpiece Weight (lbs): 17,637
Spindle(s)
Num. Main Spindles: 1
Taper: #50
Top RPM: 3,200
HP (30 min rating): 34.90
HP Opt: 49.70
Tooling
Tool Carrier: ATC
Num. Tools: 40
Num. Tools Opt: 60
Axes And Travels
Num. Axes: 4
Num. Axes Opt: 5
U Axis: None
Travel Max Feed Rate Rapid Traverse
X1 78.700" 197 394ipm
Y1 70.900" Opt: 98.400" 197 394ipm
Z1 59.000" Opt: 66.900" 197 394ipm
