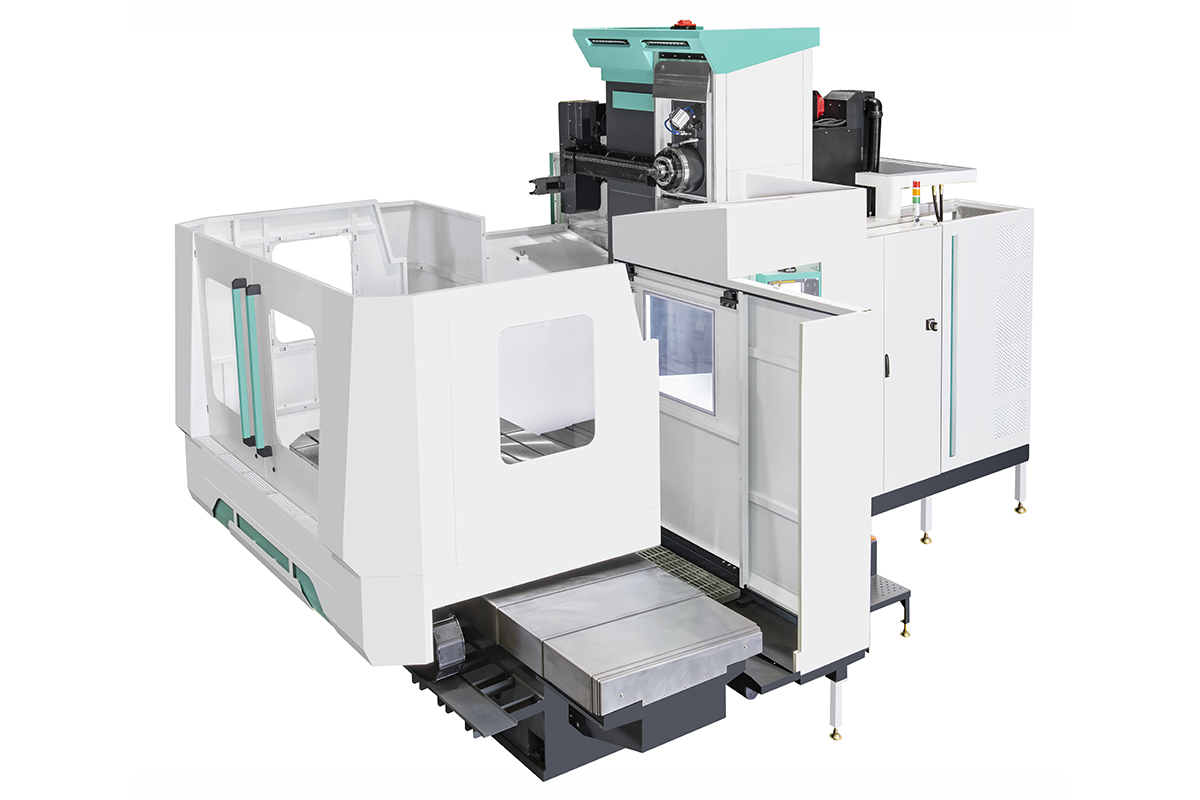

Feeler SHB-11040S
The SHB-11040S is a heavy-duty CNC horizontal boring and milling machine engineered for precision machining of large and complex workpieces that require extended travel capacity and exceptional stability. Featuring a 110 mm spindle diameter and an expanded 4,000 mm X-axis travel, the machine provides the flexibility to efficiently handle oversized components while maintaining outstanding accuracy and rigidity. Its robust cast-iron construction, high-performance spindle system, and advanced CNC controls deliver reliable boring, milling, drilling, and contouring capabilities across a wide range of applications. Designed for industries such as energy, transportation, mold & die, and heavy equipment manufacturing, the SHB-11040S offers excellent cutting performance, superior surface finish quality, and long-term machining accuracy. Combining a large work envelope with dependable productivity and precision, the SHB-11040S is an ideal solution for manufacturers seeking efficient machining of large-scale components with consistent, high-quality results.
| Machine Type: | Boring Mill |
|---|---|
| Num. of Axes: | 4 |
| Operation Type: | CNC |
| CNC Brand: | Fanuc |
| CNC Brand Opt: | Siemens |
| Table Size L x W (in.): | 157.500(L) x 55.100(W) |
|---|---|
| Max Workpiece Weight (lbs): | 26,455 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Horizontal |
| Taper: | #50 |
| Top RPM: | 3,200 |
| HP (30 min rating): | 34.90 |
| HP Opt: | 49.70 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 40 |
| Num. Tools Opt: | 60 |
| Num. Axes: | 4 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Num. Axes Opt: | 5 | ||||||||||||||||||
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
