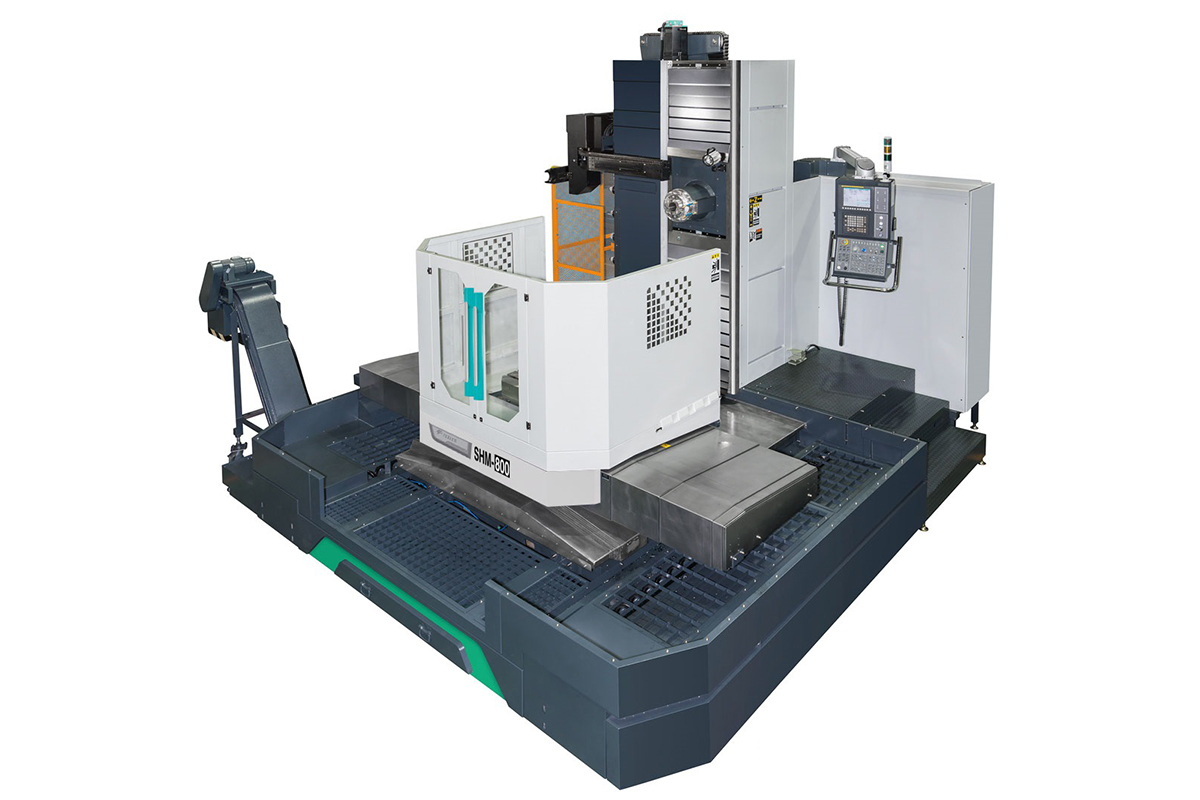

Feeler SHM-800L
The SHM-800L is a high-performance CNC horizontal boring and milling machine designed for manufacturers requiring exceptional machining capacity, accuracy, and reliability when processing large and complex workpieces. Built with a rigid machine structure, precision box guideways, and a powerful spindle system, the SHM-800L delivers outstanding stability and cutting performance during demanding boring, milling, drilling, and tapping operations. Its large-capacity rotary table and extended travel axes enable efficient multi-face machining of heavy components while reducing setup time and improving productivity. Designed for industries such as energy, heavy equipment, transportation, and general precision engineering, the SHM-800L combines advanced CNC control technology, high-precision feedback systems, and robust construction to ensure superior dimensional accuracy, excellent surface finishes, and dependable long-term performance. With its blend of power, versatility, and precision, t he SHM-800L is an ideal solution for manufacturers seeking efficient and accurate machining of large-scale components in demanding production environments.
| Machine Type: | Boring Mill |
|---|---|
| Num. of Axes: | 3 |
| Operation Type: | CNC |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 31.500(L) x 31.500(W) |
|---|---|
| Table Size L x W (in.) Opt: | 39.400(L) x 39.400(W) |
| Max Workpiece Weight (lbs): | 6,614 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Horizontal |
| Taper: | #50 |
| Top RPM: | 4,000 |
| Top RPM Opt: | 6,000 |
| HP (30 min rating): | 20.00 |
| HP Opt: | 24.80 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 40 |
| Num. Tools Opt: | 60 |
| Num. Axes: | 3 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Num. Axes Opt: | 4 | ||||||||||||||||||
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
