VMX-1020
Feeler logo

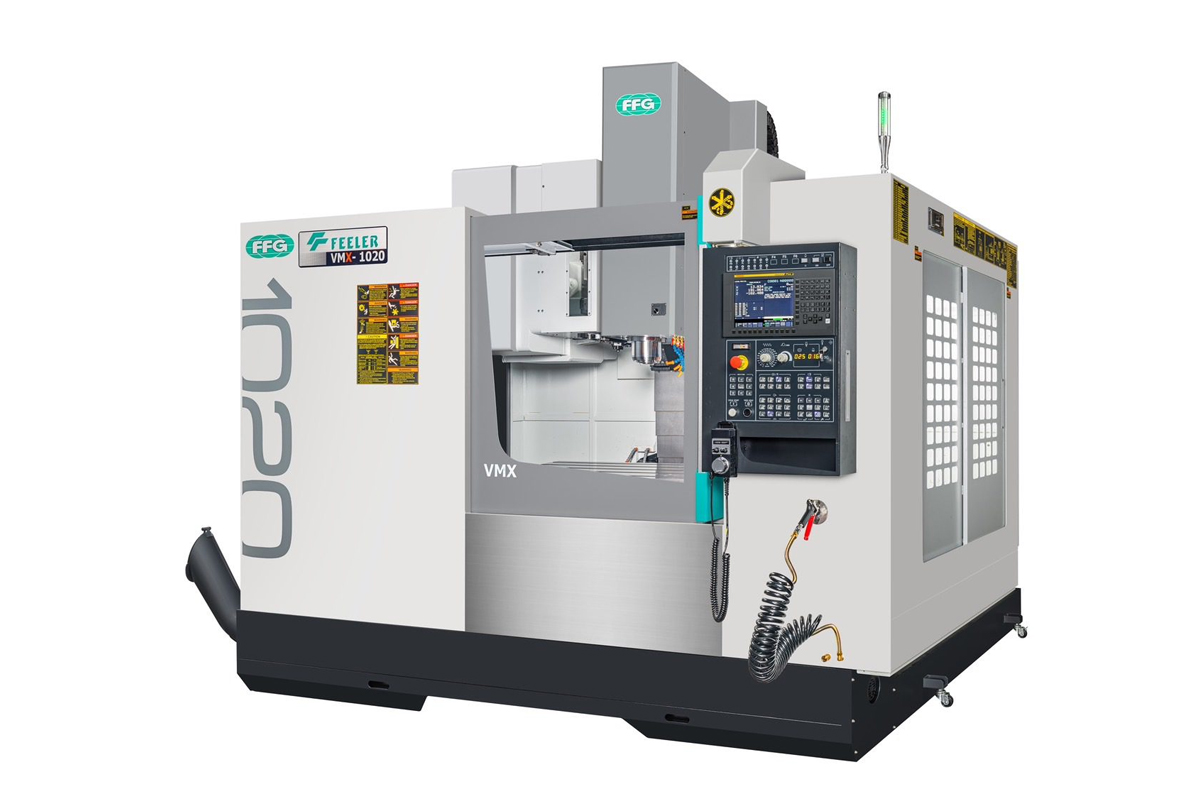

Feeler VMX-1020

Fanuc 0i-MF Controller 10.4” LCD Monitor Manual Guide i Spindle CAT #40 (Dual Contact) 12,000 rpm DDS Powerful 24.8 HP (18.5 kW) S3-15% Torque 87 lbf-ft (118 N.m) Oil Chiller Table 45.2” (1,150mm) x 20.5” (520mm) 1,760 lbs.(800kg) Load Capacity ATC 30 Tools X / Y / Z Roller Guide Ways 1,000 PSI Coolant Through Spindle Preparation w/ Rotary Unit. Oil Skimmer Dual Y-Axis Augers Coolant Gun (8) Extra M-Code 4th Axis Interface Preparation Auto Power Off Chip Conveyor 3-Color Tower Signal Light Fast 40m/min (1,574 IPM) X, Y and 30m/min (1,181 IPM) Z Rapid Traverse

The FEELER VMX Series is a versatile line of high-performance vertical machining centers engineered to deliver an outstanding combination of speed, precision, rigidity, reliability, and productivity for demanding production machining and precision part applications. Built on rigid Meehanite cast-iron structures optimized through Finite Element Analysis (FEA), VMX machines are designed for long-term dimensional stability and machining accuracy. Direct-drive spindles provide speeds up to 12,000 rpm, with 15,000-rpm options, while high-speed servo systems deliver rapid traverse rates of up to 48 m/min, helping reduce non-cutting time and improve overall throughput. The broad VMX family offers X-axis travels from 580 mm to 1,650 mm and table capacities up to 1,500 kg, allowing manufacturers to select the right machine for a wide range of workpiece sizes and production requirements. Pre-tensioned ballscrews, roller-type linear guideways, and available box-way configurations provide an effective balance of speed, rigidity, and positioning accuracy. For higher-volume production, selected VMX models are available with automatic pallet changers, including a 6-second pallet change on the VMX-580APC, enabling load/unload operations to be performed while machining continues. FEELER also offers application engineering, automation and turnkey integration capabilities to help optimize the complete manufacturing process. Optional FEELER intelligent monitoring and thermal compensation technology can minimize the effects of thermal growth, with thermal deviation controlled within 0.02 mm, supporting consistent machining quality during extended production. With multiple machine sizes, spindle configurations, automation options, tool capacities, probing, linear scales and chip-management solutions, the FEELER VMX Series provides manufacturers with a flexible, productive platform capable of supporting both high-mix machining and demanding production environments.
Machine Type: Machining Center
Num. of Axes: 3
Operation Type: CNC
CNC Brand: Fanuc
CNC Brand Opt: Mitsubishi
Table/Work Support
Table Size L x W (in.): 45.300(L) x 20.500(W)
Max Workpiece Weight (lbs): 1,764
Spindle(s)
Num. Main Spindles: 1
Direction: Vertical
Taper: #40
Top RPM: 12,000
HP (30 min rating): 25.00
Tooling
Tool Carrier: ATC
Num. Tools: 24
Tool Change Time (sec): 1.70
Axes And Travels
Num. Axes: 3
Num. Axes Opt: 5
U Axis: None
Travel Max Feed Rate Rapid Traverse
X1 40.200" 1,575ipm
Y1 20.500" 1,575ipm
Z1 22.000" 1,575ipm
