VUX-300T
Feeler logo

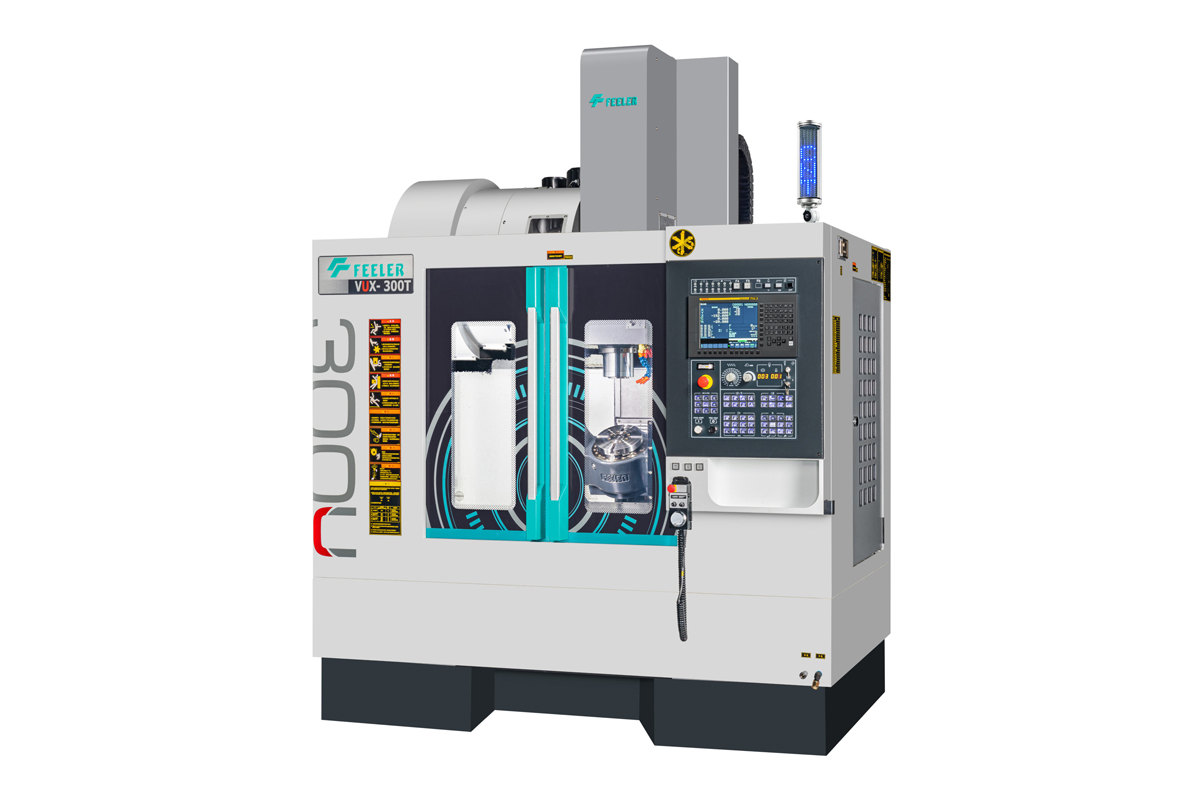

Feeler VUX-300T

Fanuc 0i-MF Plus controller 4” LCD monitor Spindle HSK A63 Powerful 24.8 HP (18.5 kW) S3-15% Torque 87 lbf-ft (118 N.m) Oil Chiller Table 9” (200 mm) Diameter 165 lbs. (75 kg – V/H) load capacity A/C rotation speed: 16.6 / 1,200 rpm ATC 24 Tools X / Y / Z Roller guide ways Fast 36 m/min (1,417 IPM) X, Y and 32 m/min (1,260 IPM) Z rapid traverse AICC II Coolant gun Scraper type with drum chip conveyor for aluminum chip with bucket Oil skimmer Air conditioner for electric cabinet 70 bar CTS preparation (spindle interface + top roof + electric wiring + rotary union) Hydraulic interface (2 inlets & 2 outlets on the table) Auto power off Spindle air sealing Spindle coolant ring Spindle coolant & air nozzles Flushing system & coolant gun Door interlock E-manuals provided by QR code 3 color tower signal light 2-year controller warranty & 1 year machinery warranty

The FEELER VUX Series is a high-speed, high-precision 4/5-axis vertical machining center platform designed for manufacturers producing complex, multi-surface components that would otherwise require multiple setups on conventional 3-axis machines. Available in VUX-300, VUX-300T, VUX-400, and VUX-500 configurations, the series accommodates workpieces up to Ø500 × 325 mm and is ideally suited for demanding aerospace, automotive, energy, precision mold, and complex component applications. The integrated tilting and rotary table enables multi-sided and angular machining in a single setup, reducing repetitive workpiece positioning, shortening overall processing time, and improving part accuracy by minimizing errors associated with multiple setups. It also provides improved access to undercuts and complex surfaces while allowing shorter cutting tools to be used for greater rigidity, longer tool life, and improved surface finish. VUX machines feature rigid Meehanite cast-iron construction optimized through ANSYS and NASTRAN finite element analysis, high-precision roller-type linear guideways, and a one-piece spindle head design engineered for rigidity, stability, and long-term accuracy. A 12,000-rpm direct-drive spindle with up to 18.5 kW (24.8 hp) is standard, providing the speed and performance required for productive precision machining. Available technologies include linear scales, rotary-axis angle encoders, through-spindle coolant, wireless workpiece measurement, laser tool measurement, automatic doors, and rotary-axis calibration, making the VUX well suited for advanced and automated manufacturing environments. By combining multi-axis capability, single-setup productivity, high-speed machining, rigidity, and automation readiness, the FEELER VUX Series helps manufacturers reduce setups, shorten lead times, improve part quality, and competitively produce increasingly complex components.
Machine Type: Machining Center
Num. of Axes: 4
Operation Type: CNC
CNC Brand: Fanuc
Table/Work Support
Table Size L x W (in.): 7.900(L) x 7.900(W)
Max Workpiece Weight (lbs): 265
Spindle(s)
Num. Main Spindles: 1
Direction: Vertical
Taper: #40
Top RPM: 12,000
HP (30 min rating): 25.00
Tooling
Tool Carrier: ATC
Num. Tools: 20
Axes And Travels
Num. Axes: 4
Num. Axes Opt: 5
U Axis: None
Travel Max Feed Rate Rapid Traverse
X1 20.100" 1,417ipm
Y1 16.500" 1,417ipm
Z1 13.600" 1,417ipm
