VBX-1300
Feeler logo

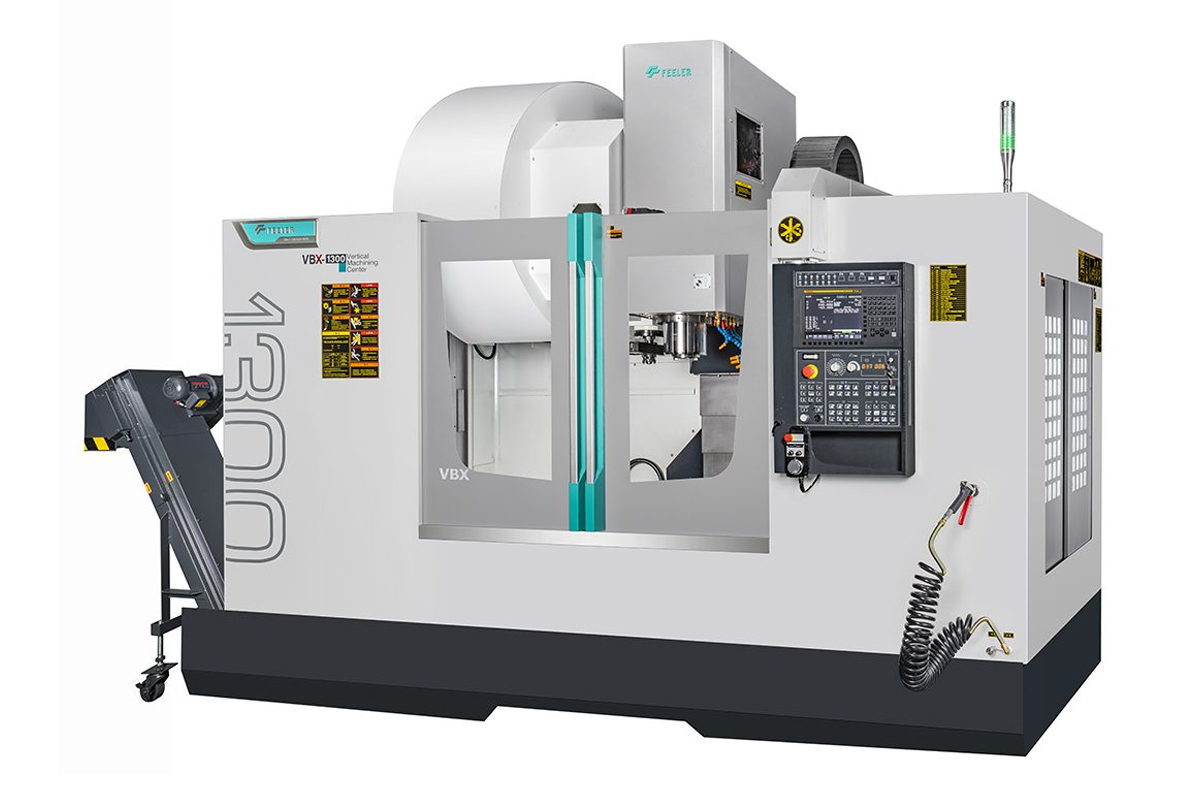

Feeler VBX-1300

Fanuc 0i-MF Plus Controller 4” LCD Manual Guide i 8,000rpm Belt Driven Spindle with Oil Cooler αi15/8,000 – 40 HP (30 kw) 30-Tool ATC CAT-50 Spindle Taper Dual Contact MAS-I Pull Stud Full Enclosed with Roof 1,000 PSI (70bar) Coolant Through Spindle (C.T.S.) Preparation with Rotary Union Rear Side Chip Flushing System with Coolant Gun 3 Color Signal Tower Light Oil Skimmer 8 Extra M-Codes Auto Power Off Chip Conveyor (without bucket) Dual Y-Axis Chip Screws 4th Axis Preparation Interface (software, wiring, & connections with socket) Front Door Interlock (lock type)

The FEELER VBX Series is a heavy-duty vertical machining center platform engineered for manufacturers that require exceptional rigidity, stability, cutting capability, and long-term accuracy. Designed with three-axis, ultra-wide box ways, the VBX Series provides the structural stiffness and vibration damping needed for demanding general machining, heavy material removal, and large-part production. The machine structure is manufactured from Meehanite cast iron and optimized using Finite Element Analysis (FEM) to maximize rigidity and reliability, while hardened and precision-ground guideways with Turcite-B surfaces provide excellent wear resistance and help maintain accuracy over years of production. Available in six sizes from the VBX-1100 through VBX-2200, the series offers X-axis travels from 1,100 to 2,200 mm, with table capacities ranging from 1,300 to 2,700 kg, enabling manufacturers to machine a broad range of large and heavy workpieces. Multiple spindle configurations, including No. 40 and No. 50 tapers, belt-drive, direct-drive, and optional gear-drive spindles, allow the machine to be tailored to specific applications. The gear-drive configuration provides high torque at low spindle speeds for aggressive heavy-duty cutting while retaining higher-speed capability for finish machining. Pre-tensioned precision ballscrews, heavy-duty four- or six-box-way base designs, spindle cooling, efficient chip evacuation, and available thermal compensation further enhance machining consistency and reliability. FEELER also offers probing, linear scales, through-spindle coolant, rotary-table preparation, and automation/turnkey integration options. By combining high torque, exceptional rigidity, large workpiece capacity, configuration flexibility, and proven box-way construction, the FEELER VBX Series provides a powerful and dependable solution for manufacturers seeking productive heavy-duty machining with excellent accuracy and durability.
Machine Type: Machining Center
Operation Type: CNC
CNC Brand: Fanuc
Table/Work Support
Table Size L x W (in.): 59.000(L) x 23.600(W)
Max Workpiece Weight (lbs): 2,860
Spindle(s)
Num. Main Spindles: 1
Direction: Vertical
Taper: #50
Taper Opt: #40
Top RPM: 4,000
Top RPM Opt: 10,000
HP (30 min rating): 40.00
Tooling
Tool Carrier: ATC
Num. Tools: 24
Tool Change Time (sec): 3.50
Axes And Travels
U Axis: None
Travel Max Feed Rate Rapid Traverse
X1 51.200" 945ipm
Y1 24.000" 945ipm
Z1 23.600" 945ipm
