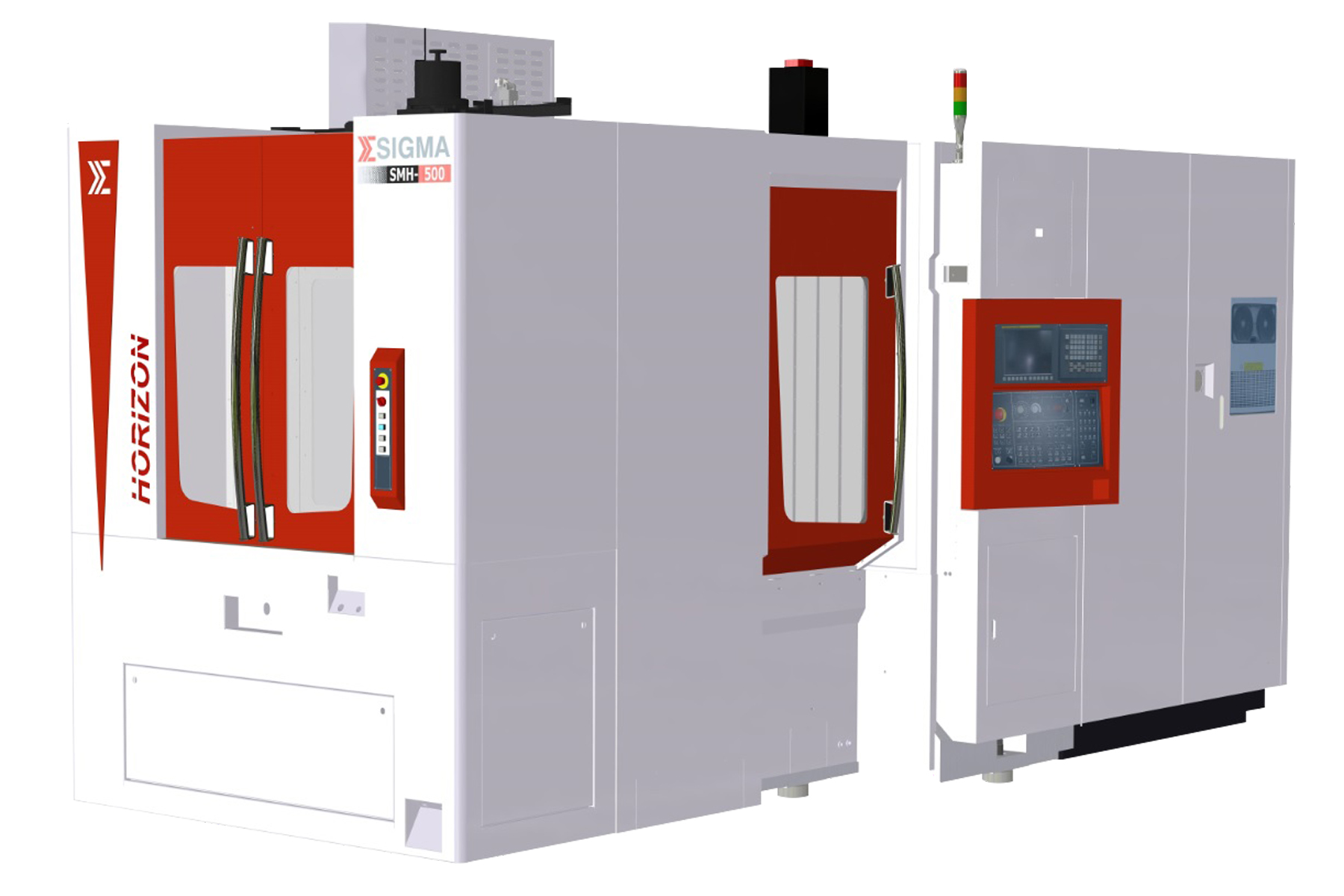

Feeler SMH-500
The HORIZON SMH-500 Horizontal Machining Center is engineered for manufacturers seeking a versatile combination of precision, speed, rigidity, and productivity in a compact platform. Designed for precision components, general mold machining, automotive and motorcycle parts, aerospace components, electronics, and semiconductor applications, the SMH-500 features a rigid, low-center-of-gravity structure with three-point support for enhanced machining stability. Its generous 762 × 710 × 800 mm X/Y/Z travels, 500 × 500 mm pallet, and 600 kg maximum pallet load accommodate a wide range of workpieces, while rapid traverse rates of up to 60 m/min help reduce non-cutting time. A 10,000-rpm spindle, roller-type linear guideways, efficient chip evacuation, and available thermal-error compensation support consistent accuracy and reliable performance in demanding production environments. With automation capabilities including a rotary pallet system, the SMH-500 is an ideal solution for manufactur ers looking to increase throughput while maintaining the precision, flexibility, and efficiency required for modern machining operations.
| Machine Type: | Machining Center |
|---|---|
| Num. of Axes: | 4 |
| Operation Type: | CNC |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 19.700(L) x 19.700(W) |
|---|---|
| Max Workpiece Weight (lbs): | 1,320 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Horizontal |
| Taper: | #40 |
| Taper Opt: | #50 |
| Top RPM: | 10,000 |
| HP (30 min rating): | 34.00 |
| HP Opt: | 47.00 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 40 |
| Tool Change Time (sec): | 1.50 |
| Pallet Changer Available: | Standard |
| Num. Pallets: | 2 |
| Num. Axes: | 4 | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Num. Axes Opt: | 5 | ||||||||||||||||||||||
| U Axis: | None | ||||||||||||||||||||||
|
|||||||||||||||||||||||
