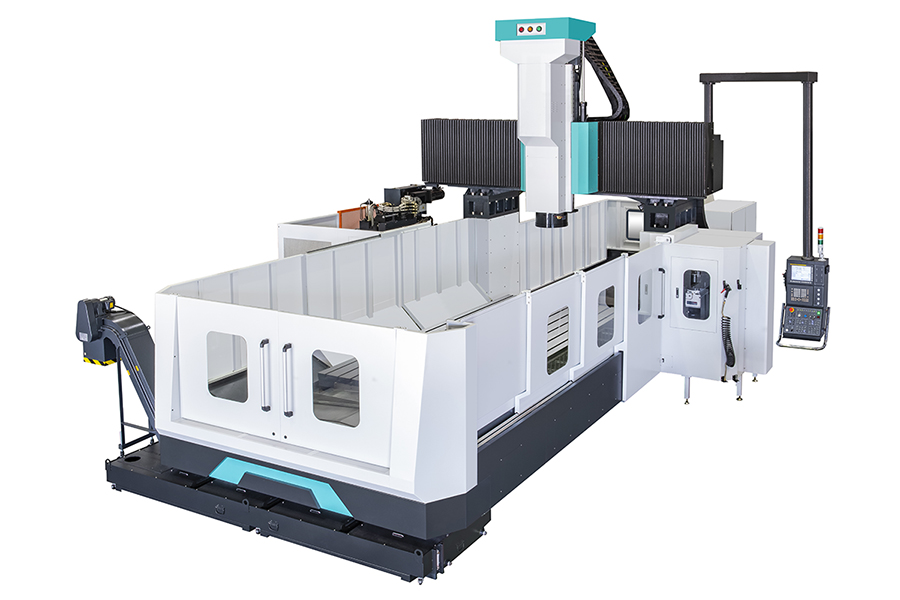

SVW-2113

Feeler SVW-2113

The SVW-2113 is a double-column vertical machining center designed to deliver the rigidity, stability, and precision required for machining large, demanding components. As part of the SVW Series, the SVW-2113 combines a robust bridge-style construction with a spacious machining envelope, making it well suited for applications involving large dies and molds, automotive components, aerospace structures, and general industrial parts. Its configuration supports heavy-duty cutting while maintaining dimensional accuracy and consistent machining performance, and the platform can be equipped with optional milling-head solutions to expand machining flexibility. With its combination of large-part capacity, structural rigidity, precision, and versatility, the SVW-2113 provides manufacturers with a productive solution for complex, high-value machining applications.

The SVW Series from FFG Americas is a heavy-duty line of double-column vertical machining centers engineered for high-precision machining of large and complex workpieces. Designed with a rigid bridge-type structure and generous machining capacity, the SVW platform is well suited for demanding applications such as die and mold, aerospace, automotive, energy, and general heavy equipment manufacturing. The series offers multiple machine sizes, including models ranging from SVW-2217 through SVW-4225, along with extended table and travel configurations that allow manufacturers to match machine capacity to their part requirements. Optional configurations, including milling-head solutions and extended machine arrangements, further increase the platform's versatility. Overall, the SVW Series combines structural rigidity, machining accuracy, large-part capability, and configuration flexibility, making it an effective solution for manufacturers seeking productive and reliable machining of large components.
Machine Type: Machining Center
Num. of Axes: 3
Operation Type: CNC
CNC Brand: Fanuc
Table/Work Support
Table Size L x W (in.): 78.700(L) x 43.300(W)
Max Workpiece Weight (lbs): 8,800
Spindle(s)
Num. Main Spindles: 1
Direction: Vertical
Taper: #50
Taper Opt: #40
Top RPM: 6,000
Top RPM Opt: 15,000
HP (30 min rating): 25.00
Tooling
Tool Carrier: ATC
Num. Tools: 24
Num. Tools Opt: 40
Pallet Changer Available: None
Axes And Travels
Num. Axes: 3
U Axis: None
Travel Max Feed Rate Rapid Traverse
X1 82.700" 394 945ipm
Y1 47.200" 394 945ipm
Z1 31.500" Opt: 39.400" 394 945ipm
