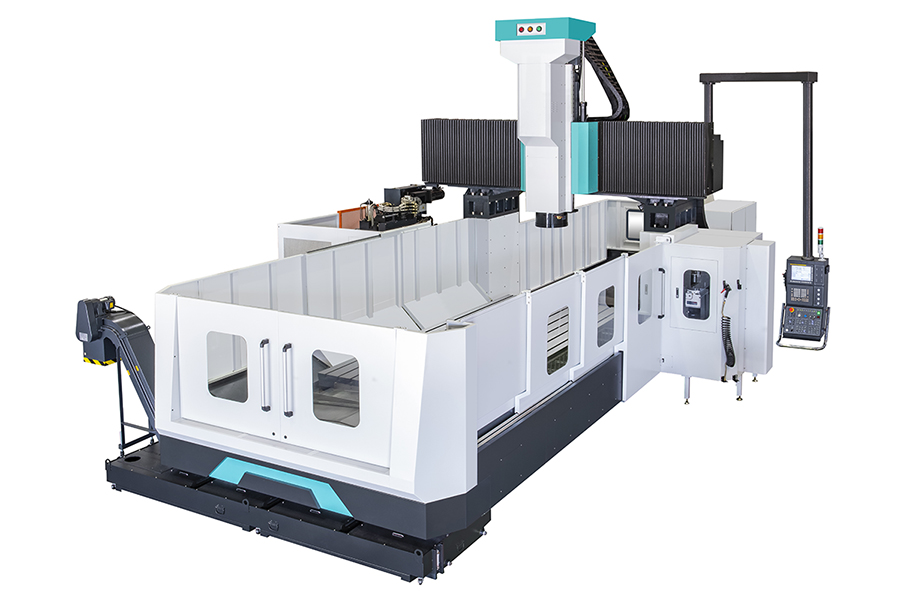

Feeler SVW-2217
The FEELER SVW-2217 is a heavy-duty double-column machining center engineered for demanding applications requiring exceptional rigidity, accuracy, and machining versatility. Its robust double-column construction provides a stable platform for heavy cutting and precision machining of large components. Designed to combine substantial workpiece capacity with a compact machining envelope, the SVW-2217 is well suited for manufacturers producing dies and molds, industrial components, and other large precision parts. Available milling head options further expand machining capability, allowing manufacturers to tackle complex workpieces while reducing setups and improving overall productivity.
| Machine Type: | Machining Center |
|---|---|
| Num. of Axes: | 3 |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 78.700(L) x 55.100(W) |
|---|---|
| Max Workpiece Weight (lbs): | 17,637 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Vertical |
| Taper: | #50 |
| Taper Opt: | #40 |
| Top RPM: | 6,000 |
| Top RPM Opt: | 8,000 |
| HP (30 min rating): | 25.00 |
| HP Opt: | 35.00 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 24 |
| Num. Tools Opt: | 60 |
| Num. Axes: | 3 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
