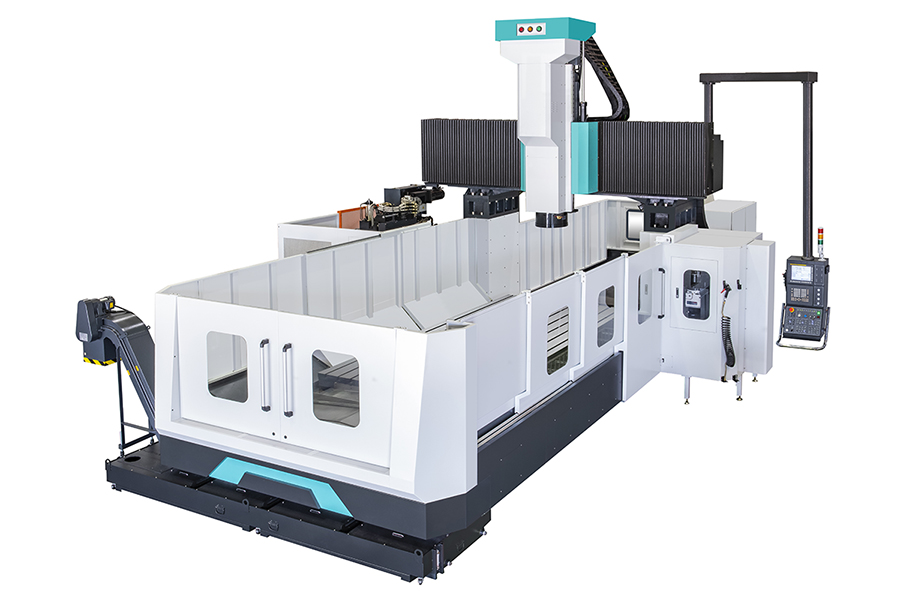

Feeler SVW-4217
Built for large parts, long workpieces, and demanding production, the FEELER SVW-4217 combines the rigidity of a heavy-duty double-column platform with the extended capacity required for oversized components. Its robust machine construction provides a stable platform for heavy cutting and precision machining, while available milling head configurations add flexibility for complex and multi-face applications. The SVW-4217 is an ideal solution for manufacturers looking to consolidate machining operations, reduce setups, and increase productivity on large-component work.
| Machine Type: | Machining Center |
|---|---|
| Num. of Axes: | 3 |
| Operation Type: | CNC |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 157.500(L) x 55.100(W) |
|---|---|
| Max Workpiece Weight (lbs): | 30,864 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Vertical |
| Taper: | #50 |
| Taper Opt: | #40 |
| Top RPM: | 6,000 |
| Top RPM Opt: | 8,000 |
| HP (30 min rating): | 25.00 |
| HP Opt: | 35.00 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 24 |
| Num. Tools Opt: | 60 |
| Num. Axes: | 3 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
