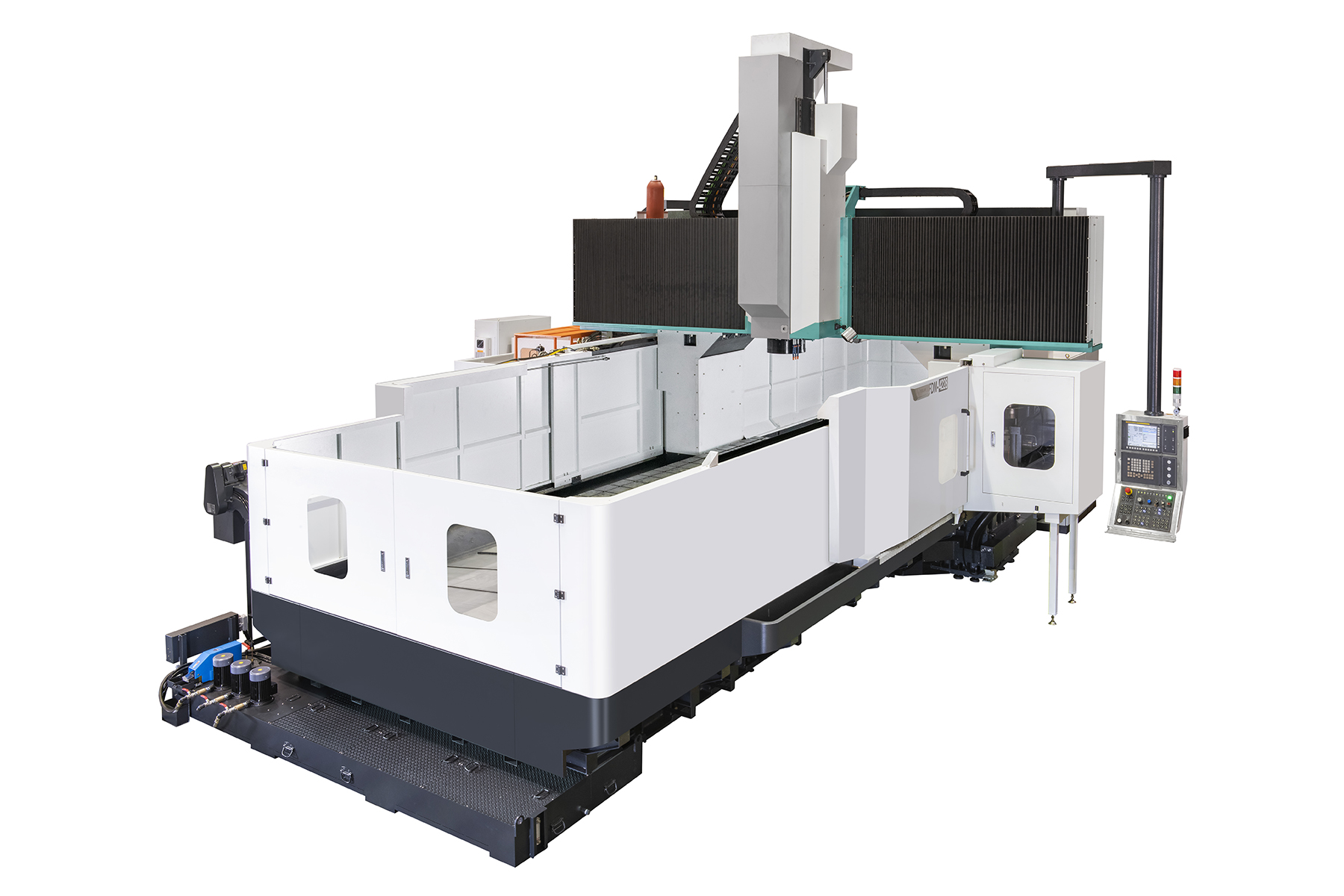

The FEELER FDM-5235 CNC Double Column Machining Center is engineered for high-rigidity, high-precision machining of large molds, dies, aerospace components, and structural parts. Featuring a 5,200 mm X-axis travel, 3,400 mm Y-axis travel, and 800 mm standard Z-axis travel, with optional Z-axis travels up to 1,400 mm, the FDM-5235 provides substantial capacity for large, wide, and complex workpieces. Its 5,000 × 3,000 mm worktable supports loads up to 26 metric tons standard, with a 29-ton option, while the 3,500 mm distance between columns provides generous clearance for oversized components. Built with a rigid cast-iron structure, fully supported table, heavy-duty axis construction, and thermal management features, the FDM-5235 delivers excellent stability, accuracy, and vibration resistance during heavy cutting and precision machining. With a 6,000 rpm standard spindle, multiple spindle and automatic tool changer configurations, and optional specialized milling heads for expanded m
achining capability, the FDM-5235 is a versatile solution for mold and die, aerospace, automotive, and large structural component manufacturing.
