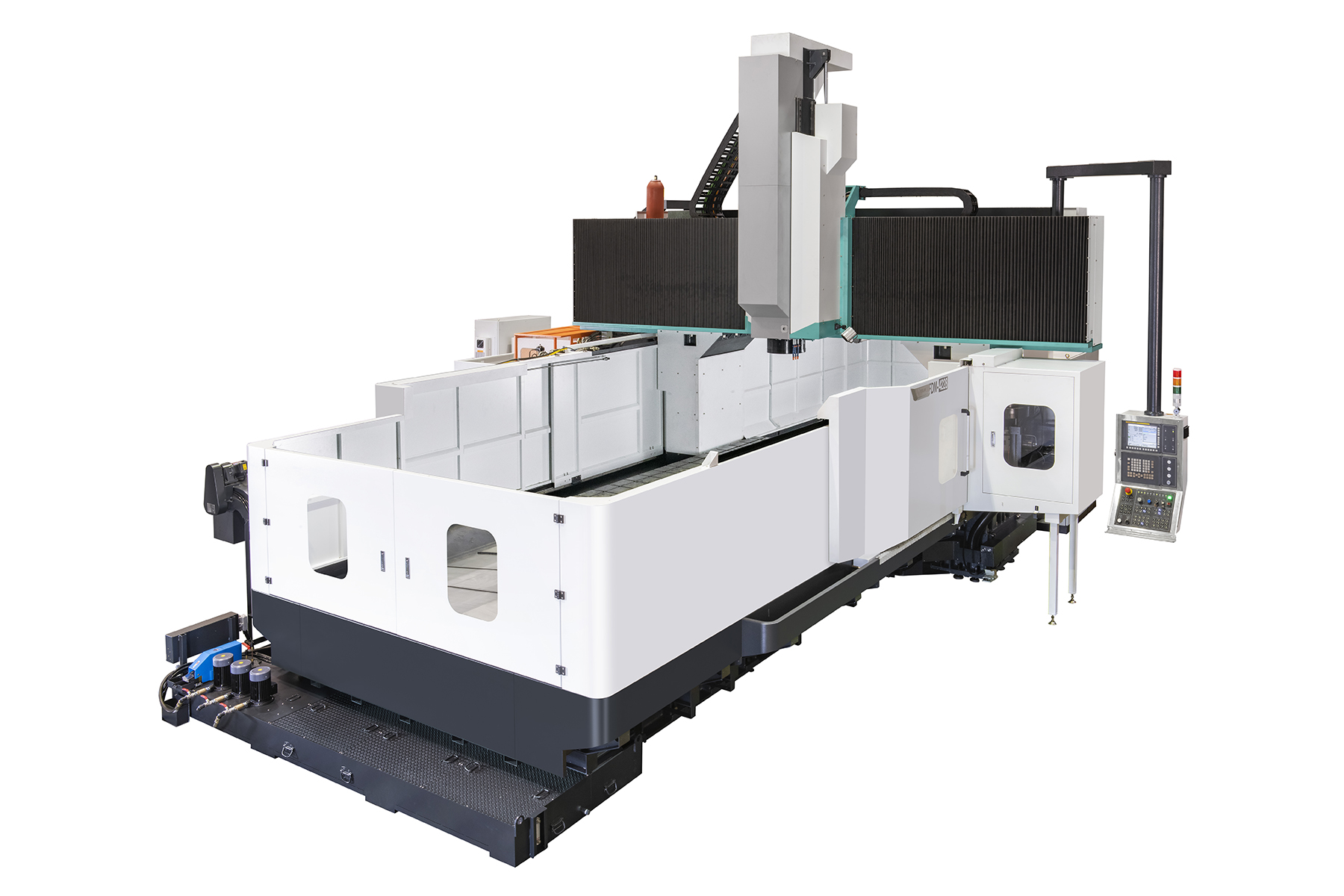

The FEELER FDM-7235 CNC Double Column Machining Center is engineered for high-rigidity, high-precision machining of large molds, dies, aerospace components, and structural parts. Featuring a 7,200 mm X-axis travel, 3,400 mm Y-axis travel, and 800 mm standard Z-axis travel, with optional Z-axis travels up to 1,400 mm, the FDM-7235 provides extensive machining capacity for exceptionally large, wide, and heavy workpieces. Its 7,000 × 3,000 mm worktable supports loads up to 27 metric tons standard, with a 30-ton option, while the 3,500 mm distance between columns provides generous clearance for oversized components. Built with a rigid cast-iron structure, fully supported table, heavy-duty axis construction, and thermal management features, the FDM-7235 is designed to deliver excellent stability, accuracy, and vibration resistance during demanding heavy-cutting and precision machining operations. Its long-travel X-axis incorporates a rack-and-pinion drive system designed to minimize backl
ash and pitch error while reducing thermal deformation. With a 6,000 rpm standard spindle, multiple spindle and automatic tool changer configurations, and optional specialized milling heads for expanded five-face machining capability, the FDM-7235 is a powerful solution for mold and die, aerospace, automotive, and large structural component manufacturing. [FDM_EN | PDF]
