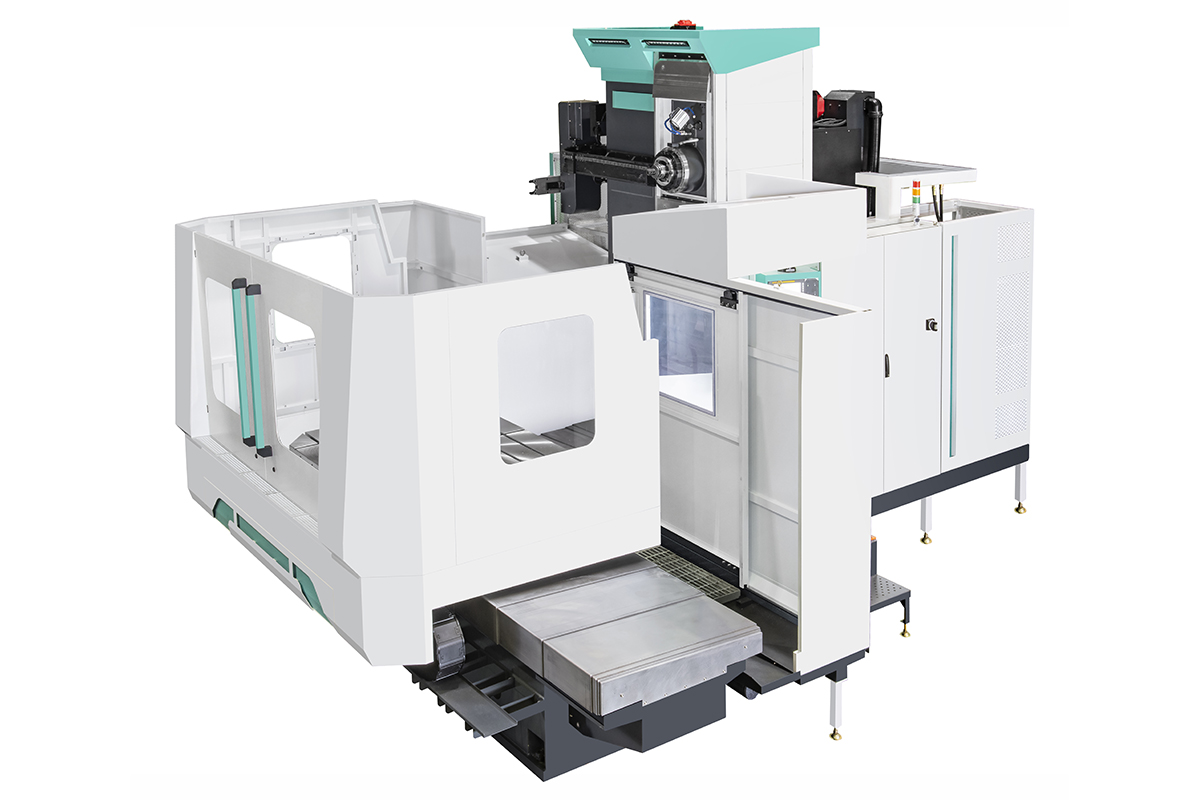

Feeler SHB-11030RM
The SHB-11030RM is a versatile CNC horizontal boring and milling machine engineered for precision machining of medium to large-sized workpieces requiring exceptional accuracy and productivity. Featuring a 110 mm spindle diameter, 3,000 mm X-axis travel, 1,500 mm Y-axis travel, 1,500 mm Z-axis travel, and 500 mm W-axis quill travel, the machine delivers an optimal combination of machining capacity, rigidity, and flexibility. Its rugged cast-iron construction, precision spindle system, and high-accuracy rotary table provide the stability needed for demanding boring, milling, drilling, and contouring operations across industries such as energy, transportation, mold & die, and general engineering. Equipped with advanced CNC controls, precision linear scales, and a high-performance automatic tool changer, the SHB-11030RM ensures reliable accuracy, reduced setup times, and efficient multi-sided machining, making it an ideal solution for manufacturers seeking consistent performance and long -term productivity on complex components.
| Machine Type: | Boring Mill |
|---|---|
| Num. of Axes: | 4 |
| Operation Type: | CNC |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 70.900(L) x 78.700(W) |
|---|---|
| Max Workpiece Weight (lbs): | 33,069 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Horizontal |
| Taper: | #50 |
| Top RPM: | 3,200 |
| Top RPM Opt: | 2,500 |
| HP (30 min rating): | 34.90 |
| HP Opt: | 49.70 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 40 |
| Num. Tools Opt: | 60 |
| Num. Axes: | 4 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Num. Axes Opt: | 5 | ||||||||||||||||||
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
