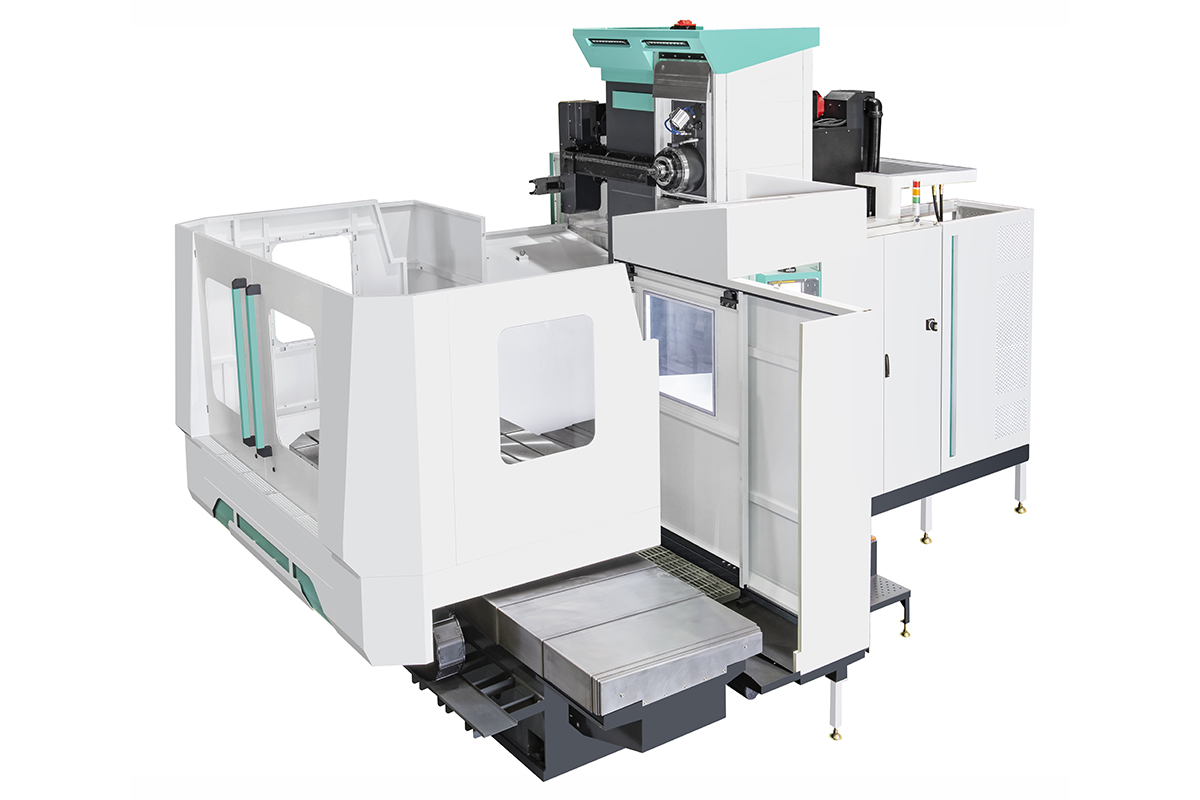

Feeler SHB-11040RM
The SHB-11040RM is a high-performance CNC horizontal boring and milling machine built for the precision machining of large and heavy workpieces. With an extended 4,000 mm X-axis travel, 1,500 mm Y-axis travel, 1,500 mm Z-axis travel, and 500 mm W-axis quill travel, it provides the reach and flexibility required for complex, large-scale machining applications. Its rugged cast-iron construction, powerful 110 mm spindle, and precision rotary table deliver exceptional rigidity, accuracy, and cutting performance across a wide range of operations, including boring, milling, drilling, and contour machining. Designed for industries such as energy, transportation, aerospace, and heavy equipment manufacturing, the SHB-11040RM incorporates precision linear scales, advanced spindle technology, and modern CNC control options to ensure reliable long-term accuracy and productivity. Combining generous work envelope capacity with stable machining performance, the SHB-11040RM is an ideal solution for manufacturers seeking efficient and accurate processing of oversized components.
| Machine Type: | Boring Mill |
|---|---|
| Num. of Axes: | 4 |
| Operation Type: | CNC |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 70.900(L) x 78.700(W) |
|---|---|
| Max Workpiece Weight (lbs): | 33,069 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Horizontal |
| Taper: | #50 |
| Top RPM: | 3,200 |
| Top RPM Opt: | 2,500 |
| HP (30 min rating): | 34.90 |
| HP Opt: | 49.70 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 40 |
| Num. Tools Opt: | 60 |
| Num. Axes: | 4 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Num. Axes Opt: | 5 | ||||||||||||||||||
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
