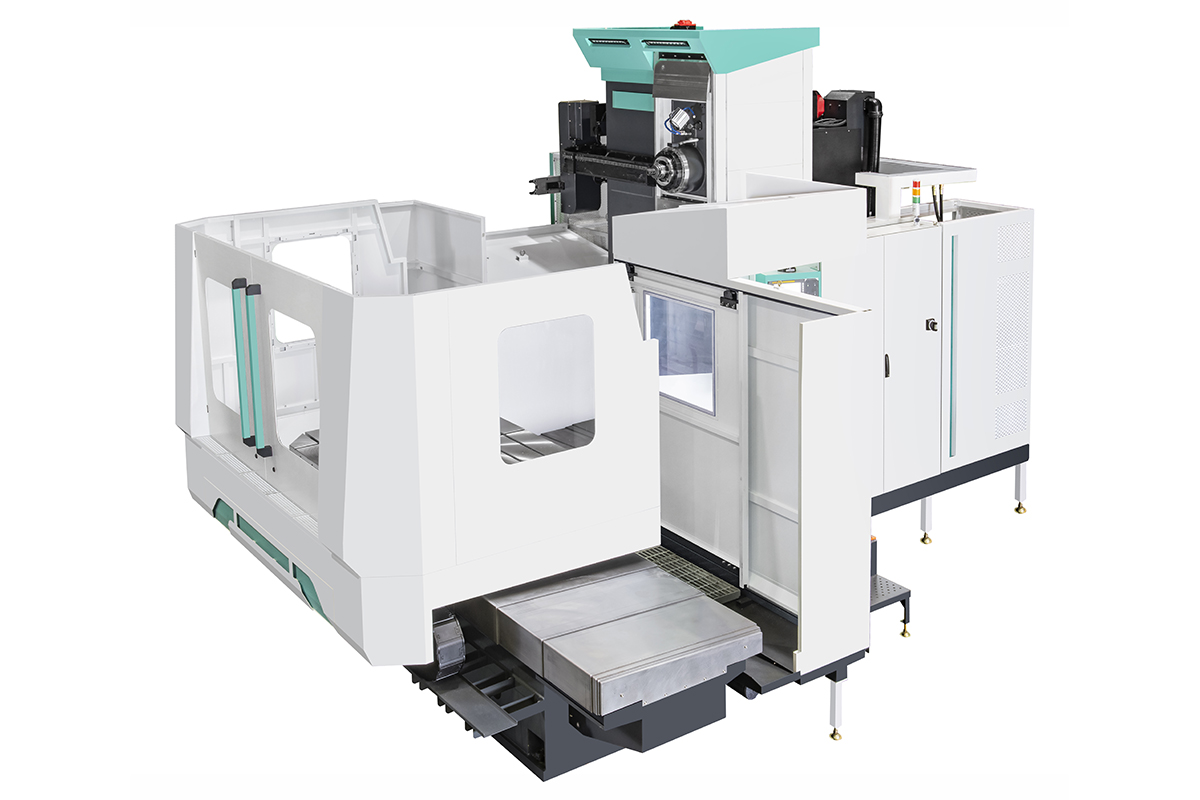

Feeler SHB-13025RS
The SHB-13025RS is a powerful CNC horizontal boring and milling machine designed for heavy-duty machining applications that demand exceptional rigidity, accuracy, and cutting performance. Equipped with a 130 mm spindle diameter, 2,500 mm X-axis travel, 2,000 mm Y-axis travel, 1,800 mm Z-axis travel, and 700 mm W-axis quill travel, it offers substantial machining capacity for large and complex components. Its robust moving-column construction, precision rotary table, and high-torque spindle system provide the stability required for demanding boring, milling, drilling, and contouring operations. Designed for industries such as energy, aerospace, mining, and heavy equipment manufacturing, the SHB-13025RS incorporates precision feedback systems, advanced spindle lubrication technology, and leading CNC control options to ensure consistent accuracy and long-term reliability. Combining a generous work envelope with outstanding machining precision, the SHB-13025RS is an ideal solution for ma nufacturers seeking efficient processing of large workpieces while maintaining superior surface finishes and dimensional accuracy.
| Machine Type: | Boring Mill |
|---|---|
| Num. of Axes: | 4 |
| Operation Type: | CNC |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 55.100(L) x 63.000(W) |
|---|---|
| Table Size L x W (in.) Opt: | 63.000(L) x 70.900(W) |
| Max Workpiece Weight (lbs): | 15,432 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Horizontal |
| Taper: | #50 |
| Top RPM: | 2,700 |
| Top RPM Opt: | 2,000 |
| HP (30 min rating): | 34.90 |
| HP Opt: | 49.70 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 40 |
| Num. Tools Opt: | 60 |
| Num. Axes: | 4 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Num. Axes Opt: | 5 | ||||||||||||||||||
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
