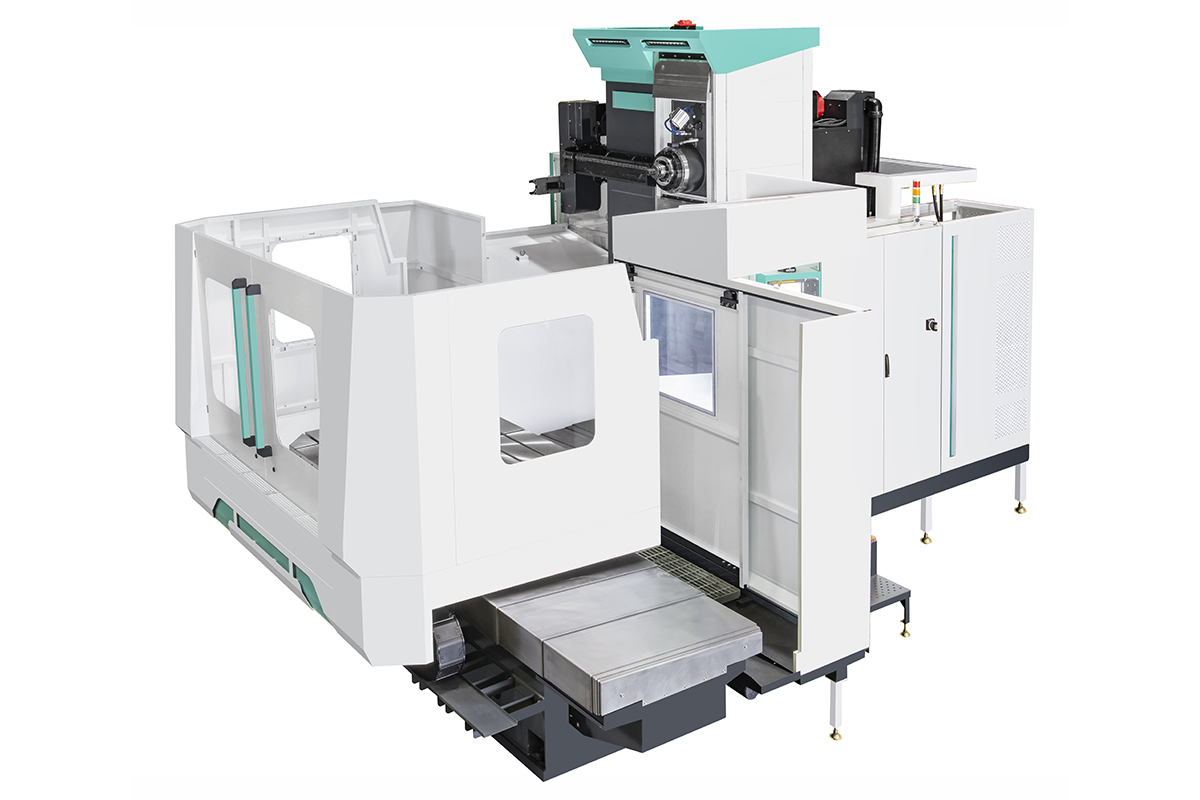

Feeler SHB-13030S
The SHB-13030S is a powerful CNC horizontal boring and milling machine designed for high-precision machining of large and demanding workpieces across a wide range of industries. Equipped with a robust 130 mm spindle diameter and 3,000 mm X-axis travel, it delivers the rigidity, cutting power, and machining capacity required for complex components used in energy, aerospace, transportation, and heavy equipment manufacturing. Its heavy-duty cast-iron construction, high-torque spindle system, and precision guideway design ensure exceptional stability and accuracy during boring, milling, drilling, and contouring operations. Advanced CNC control options and high-precision feedback systems provide reliable performance, superior surface finishes, and consistent dimensional accuracy throughout extended production cycles. Combining a spacious work envelope with outstanding machining capability and long-term durability, the SHB-13030S offers manufacturers an efficient and dependable solution fo r producing large, high-value components with confidence and precision.
| Machine Type: | Boring Mill |
|---|---|
| Num. of Axes: | 4 |
| Operation Type: | CNC |
| CNC Brand: | Fanuc |
| CNC Brand Opt: | Siemens |
| Table Size L x W (in.): | 118.100(L) x 55.100(W) |
|---|---|
| Max Workpiece Weight (lbs): | 22,046 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Horizontal |
| Taper: | #50 |
| Top RPM: | 2,700 |
| HP (30 min rating): | 34.90 |
| HP Opt: | 49.70 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 40 |
| Num. Tools Opt: | 60 |
| Num. Axes: | 4 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Num. Axes Opt: | 5 | ||||||||||||||||||
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
