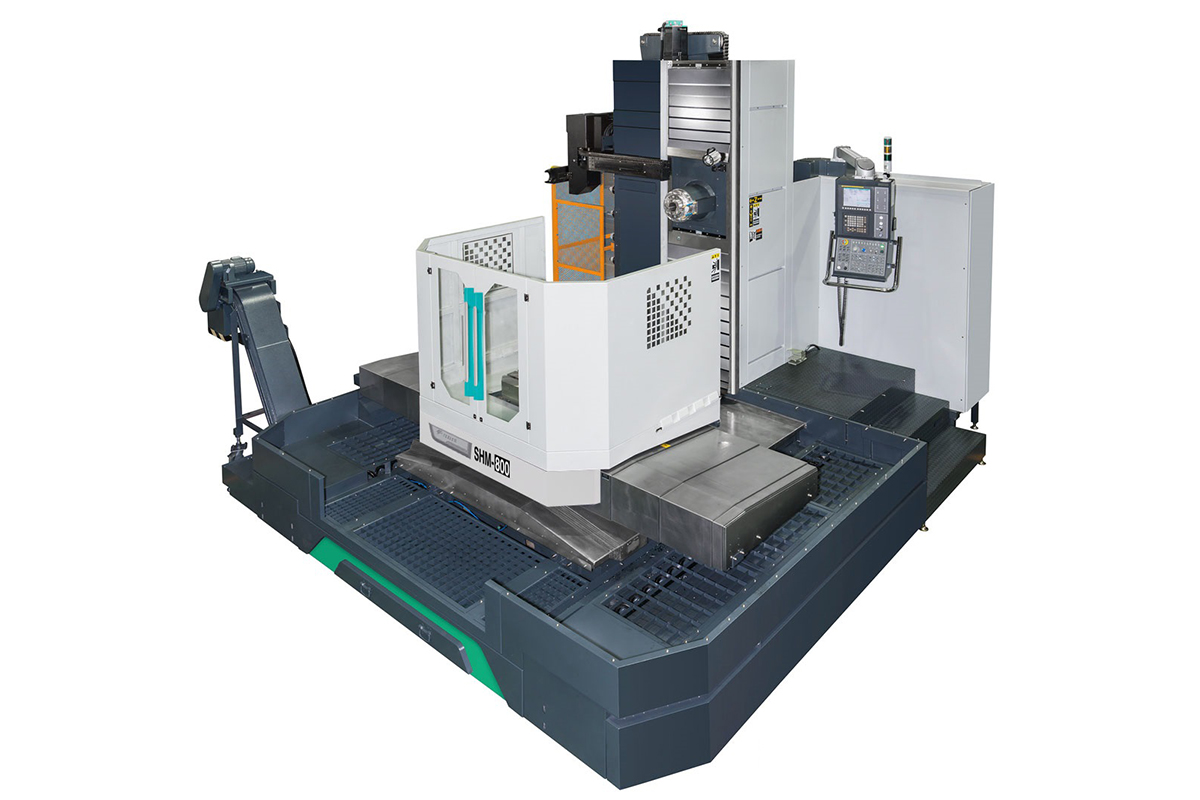

Feeler SHM-630L
The SHM-630L is a compact and highly versatile CNC horizontal boring and milling machine designed to deliver exceptional precision, rigidity, and productivity for a wide range of machining applications. Built with a robust machine structure, precision guideways, and a high-performance spindle system, the SHM-630L provides outstanding stability and accuracy for boring, milling, drilling, and tapping operations. Its horizontal spindle configuration and rotary table design enable efficient multi-face machining, reducing setup times and increasing overall throughput. Ideal for industries such as mold & die, automotive, energy, and general engineering, the SHM-630L combines reliable machining performance with advanced CNC technology to ensure consistent part quality, excellent surface finishes, and long-term operational durability. With its balance of flexibility, precision, and efficiency, the SHM-630L is an excellent solution for manufacturers seeking high-performance machining of mediu m-sized workpieces.
| Machine Type: | Boring Mill |
|---|---|
| Num. of Axes: | 3 |
| Operation Type: | CNC |
| CNC Brand: | Fanuc |
| Table Size L x W (in.): | 24.800(L) x 24.800(W) |
|---|---|
| Table Size L x W (in.) Opt: | 27.600(L) x 35.400(W) |
| Max Workpiece Weight (lbs): | 3,307 |
| Num. Main Spindles: | 1 |
|---|---|
| Direction: | Horizontal |
| Taper: | #50 |
| Top RPM: | 4,000 |
| Top RPM Opt: | 6,000 |
| HP (30 min rating): | 20.00 |
| HP Opt: | 24.80 |
| Tool Carrier: | ATC |
|---|---|
| Num. Tools: | 40 |
| Num. Tools Opt: | 60 |
| Num. Axes: | 3 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Num. Axes Opt: | 4 | ||||||||||||||||||
| U Axis: | None | ||||||||||||||||||
|
|||||||||||||||||||
